Description

Verified diaphragm pressure vessel for applications in conjunction with drinking water, water supply and pressure boosting systems.
For avoiding pressure surges in the system and reducing the switching frequency of the pumps/systems.

AS4020 approved for use with drinking water

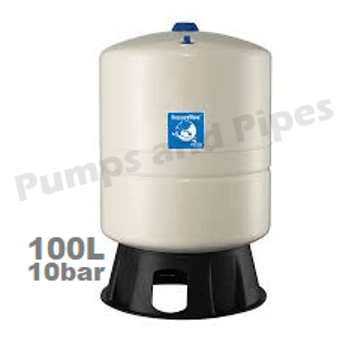

Type: PWB-100LV
Rated Pressure (PN bar): 10 bar (1000kPA)
Tank Volume: 100L approximate draw off 30 litres
Temperature range: -10degC …. +90degC
Mounting: Free Standing with plastic base
Connection:  25mm FI BSP on elbow under tank

Manufacturer’s warranty:  5 years
