Wellman 4″ Layflat Bore Hose

Wellman 4″ Layflat Bore Hose


In stock


Reviews Summary by AI:

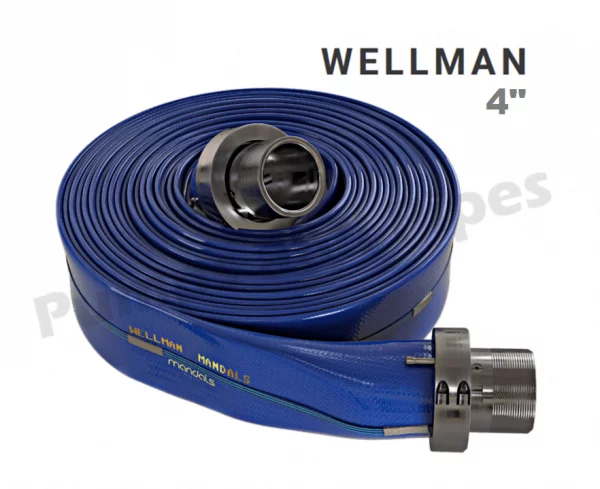

4 inch Layflat Bore Hose
Rated pressure 30 bar
Maximum length 200m

Price is per meter, hose only. Coupling is also available to purchase.
To add meters – simply increase your quantity
(2 x = items = 2 meters)



Light and flexible polyurethane layflat hose with drinking water approval, designed as a permanent alternative to traditional materials in water wells with electric submersible pumps, manufactured in Norway to exacting standards.


  • Designed for use in a borehole with a submersible pump mounted at the end of the hose.
  • Approved for use with potable water.
  • Incorporated strap with loops at the outside of the hose facilitates the strapping of the electrical cables for the pump to the hose.


  • Made from extruded thermoplastic polyesther based polyurethane (TPU) with excellent wear & tear properties.
  • Very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
  • Very high tensile strength.
  • Easier to handle than rigid pipes of steel/HPDE or similar.


  • Simple installation and retrieval.
  • Very good hydraulic characteristics.
  • Less friction and more low due to diameter swell.
  • Low risk of damage to cables and pump.
  • No corrosion.
  • Simple maintenance

Additional information

Weight10 kg


Wellman Hose Data Sheet
