Description

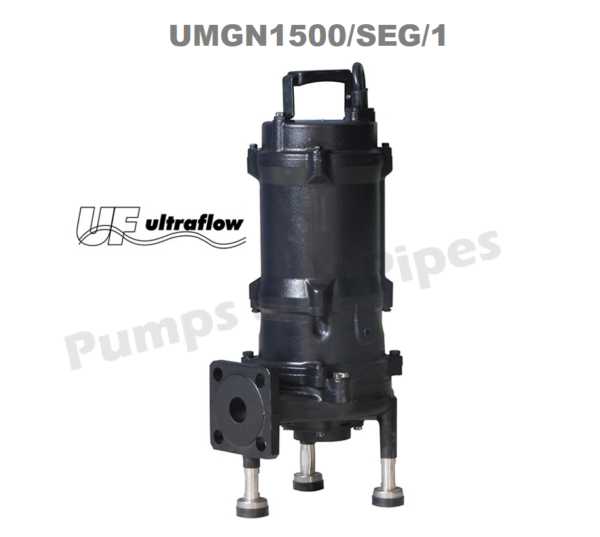

The Ultraflow Sewage Grinder range of submersible pumps are suitable for:

Raw sewage transfer and Trade waste disposal
Grey water and septic transfers
Pumping liquids with soft solids

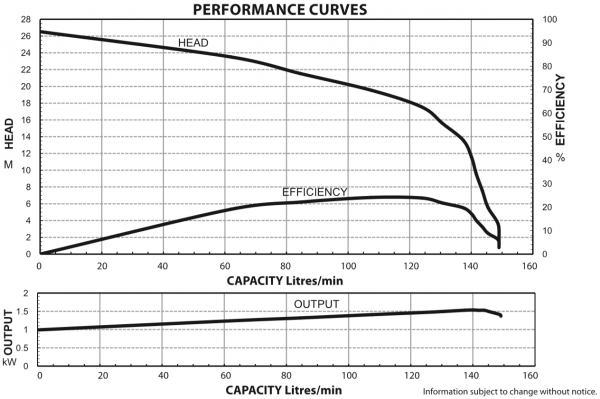

Pump performance:  1.5 lps @ 21 metres

Pump Impeller: Semi Open impeller
Pump Connection: 32mm FI BSP flanged elbow supplied
Square DIN40 flange to auto adapt to other major brands
Grinder: Heat treated 440 Stainless steel
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   1.5kW 240/1/50 IP68 2 pole FLC 9.8 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  1.5mm 3C + E 10 meters in length
Weight:  36kg

Features

CE& ISO 9001 certified
All metal construction
Dual mechanical seal + lip seal in oil bath
Silicon carbide faces to lower seal
Double bearing at lower end of electrical motor
Capacitors & relays for 240 volt models are built in motor cap
Can be installed with a guide rail system
Anti-wicking, epoxy filled cabled gland

Manufacturer’s warranty:  2 years  Made in Taiwan

Additional information
