Description

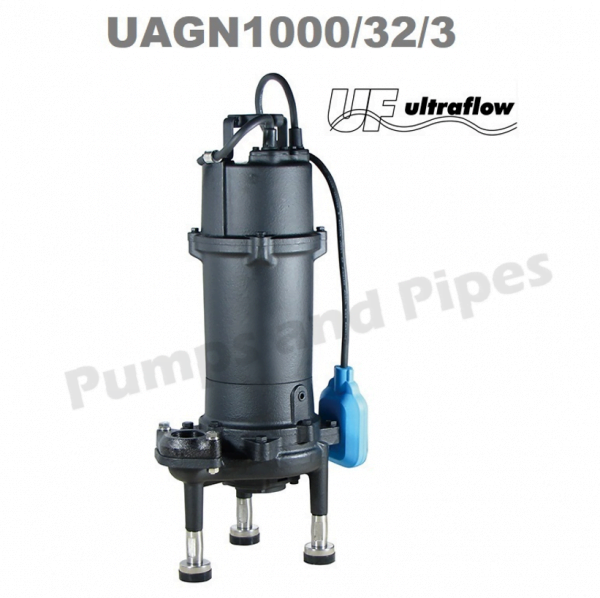

The Ultraflow Sewage Grinder range of submersible pumps are suitable for;

• Raw sewage transfer and trade waste disposal
• Grey water and septic transfers
• Pumping liquids with soft solids

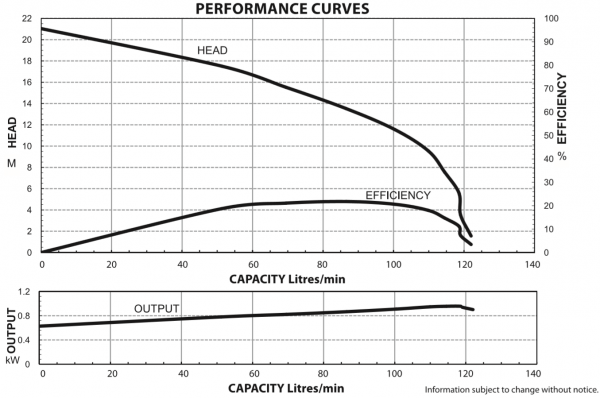

Pump performance :  duty 1.2 lps @ 14.0 metres

Pump Impeller: Semi Open impeller
Pump Connection: 32mm FI BSP flanged elbow supplied
Automatic operation by float switch
Grinder: Heat treated 440 Stainless steel blades
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   1.0kW 415/3/50 IP68 2 pole FLC 2.3 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F 1.5mm 3C + E 10 metres in length
Weight:  28 kg

Features

• CE& ISO 9001 certified
• All metal construction
• Dual mechanical seal + lip seal in oil bath
• Silicon carbide faces to lower seal
• Double bearing at lower end of electrical motor
• Can be installed with a guide rail system

Manufacturer’s warranty:  2 years  Made in Taiwan
