15 lps @ 30 metres UMDNSS7500/80/3 316 SS Drainage Pump For Corrosive Brackish Applications

15 lps @ 30 metres UMDNSS7500/80/3 316 SS Drainage Pump For Corrosive Brackish Applications

$6,840.00

In stock

$6,840.00

View cart

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: 15 lps @ 30 metres
Pump performance: 20 lps @ 24 metres
Pump outlet:  DIN80 PN10 flange with 80mm FI BSP adaptor
Electrical data:  7.5kW 415/3/50 FLC 14.4 amps IP68 2 pole
Motor lead:  10 metres 3C + E H07RN-F rubber cable
Maximum submergence: 30 metres
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

SKU: UMDNSS7500/80/3

Description

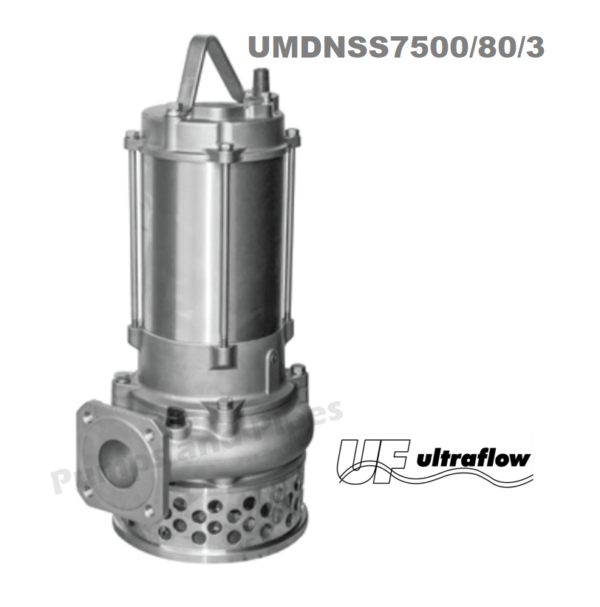

UMDNSS7500/80/3 AISI316 Stainless Steel Drainage Sump Pump

SS pump are suitable for Sit Dewatering, Basement and sump drainage, Horticulture and Aquaculture and water transfer

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: Zero flow @ 43 metres  (shut off head)
Pump performance: 10 lps @ 36 metres
Pump performance: 15 lps @ 30 metres
Pump performance: 20 lps @ 24 metres
Pump performance: 25 lps @ 15 metres

Pump outlet:  DIN80 PN10 flange with 80mm FI BSP adaptor
Solid passage:  20 mm
Electrical data:  7.5kW 415/3/50 FLC 14.4 amps IP68 2 pole
Protection: External overload required, inbuilt thermal overload to shut down and auto restart
Motor lead:  10 metres 3C + E H07RN-Frubber cable
Starting method:  DOL, Soft starter or VFD  (contact local authority for approvals)
Maximum submergence: 30 metres
Pump installation:  Free standing or auto coupling (Guide Rail System GR80HP Kit)

Manufacturer’s warranty:  2 years   Made in Taiwan

Additional information

Weight80 kg
Dimensions55 × 40 × 70 cm
Brand

Ultraflow

Ultraflow Submersible Sump Pump Range INSTALLATION

Download

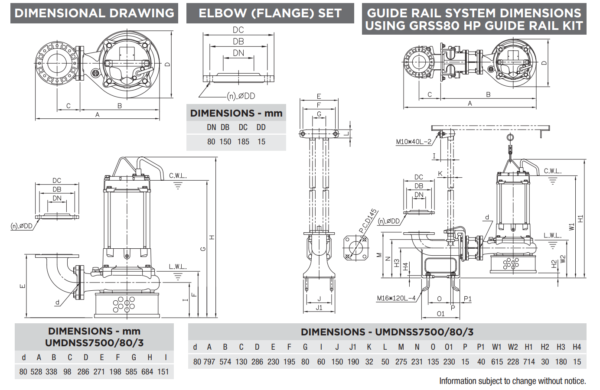

UMDNSS7500/80/3 data sheet

Download
