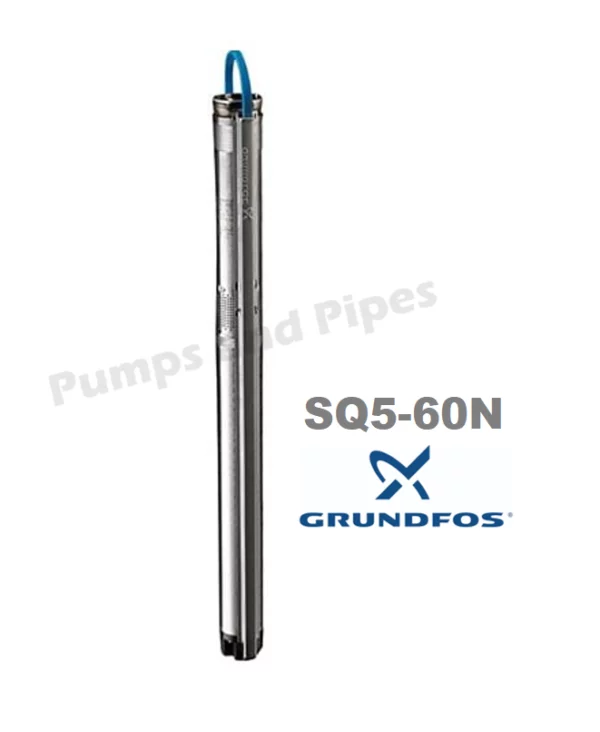

SQ5-60N Grundfos 3inch Submersible Bore Pump Unit

SQ5-60N Grundfos 3inch Submersible Bore Pump Unit

$1,540.00

In stock

$1,540.00

SQ5-60 is suitable for domestic water supply, tank filling and irrigation
SQ range can be run from single phase power supply or generator power supply
Flow rate:  90 lpm @ 55 meters   (1200 gph)
Motor details:  1.55 kW single phase FLC 11.2A
Pump discharge: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years

SKU: 96160430

Description

SQ5-60 is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ5-60 offers the following features: dry run protection, soft starting, under and over voltage protection, overload and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  26 lpm @ 82 meters    (350 gph)
Flow rate:  45 lpm @ 78 meters   (600 gph)
Flow rate:  90 lpm @ 55 meters   (120 gph)

Power supply:   230Volt AC single phase
Motor details:  1.55 kW 50HZ 10,700rpm, IP68 rated FLC 11.2A max submergence 100m
Pump discharge: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico





Additional information

Weight 7 kg
Dimensions 80 × 10 × 10 cm

SQ-N Brochure

Download

SQ5-60N technical data

Download
