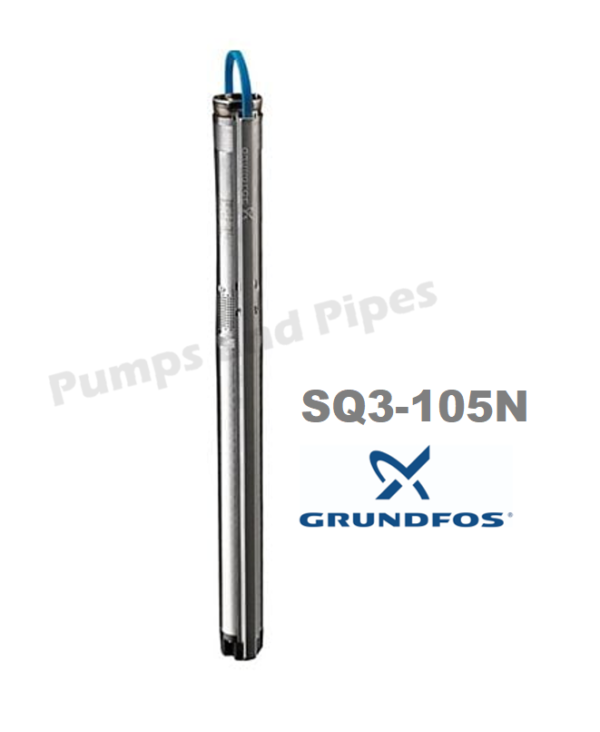

SQ3-105N Grundfos 3inch Submersible Bore Pump Unit Single Phase

SQ3-105N Grundfos 3inch Submersible Bore Pump Unit Single Phase

$1,740.00

In stock

$1,740.00

SQ3-105N is suitable for domestic water supply, tank filling and irrigation
SQ3-105N offers the following features dry running protection and soft starting
Flow rate:  45 lpm @ 120 meters   (approx. 600 gph)
Power supply:   230Volt AC single phase
Motor details:  1.85 kW single phase FLC 12.3A
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years

SKU: 96160392

Description

SQ3-105N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ3-105N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  25 lpm @ 140 meters    (330 gph)
Flow rate:  38 lpm @ 130 meters   (500 gph)
Flow rate:  60 lpm @ 92 meters   (790 gph)

Power supply:   230Volt AC single phase
Motor details:  1.85 kW 50HZ 10,700rpm, IP68 rated FLC 12.3A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years    Made in Mexico

Additional information

Weight 9 kg
Dimensions 80 × 10 × 10 cm

SQ-N Brochure

Download

SQ3 curve and tech data

Download
