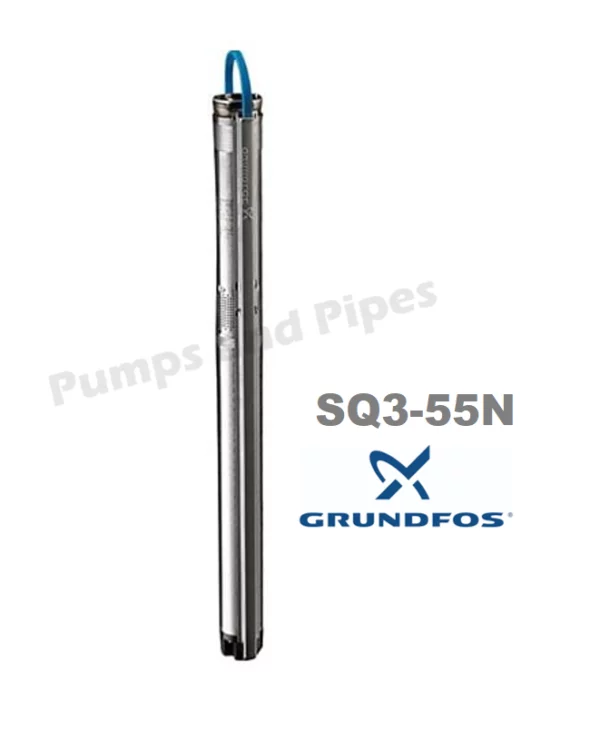

SQ3-55N Grundfos 3inch Submersible Bore Pump Unit

SQ3-55N Grundfos 3inch Submersible Bore Pump Unit

$1,090.00

In stock

$1,090.00

SQ3-55 is suitable for applications including domestic water supply, tank filling and irrigation
SQ3-55 offers dry run protection and soft starting
Flow rate:  38 lpm @ 63 meters   (500 gph)
Electrical details:  1.15 kW single phase FLC 5.4A
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Maximum diameter of pump: 74mm

Manufacturer’s warranty:  2 years

SKU: 96160421

Description

SQ3-55 is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ3-55 offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  25 lpm @ 68 meters    (330 gph)
Flow rate:  38 lpm @ 63 meters   (500 gph)
Flow rate:  60 lpm @ 45 meters   (790 gph)

Power supply:   230Volt AC single phase
Motor details:  1.15 kW 50HZ 10,700rpm, IP68 rated FLC 5.4A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico





Additional information

Weight 7 kg
Dimensions 80 × 10 × 10 cm

SQ-N Brochure

Download

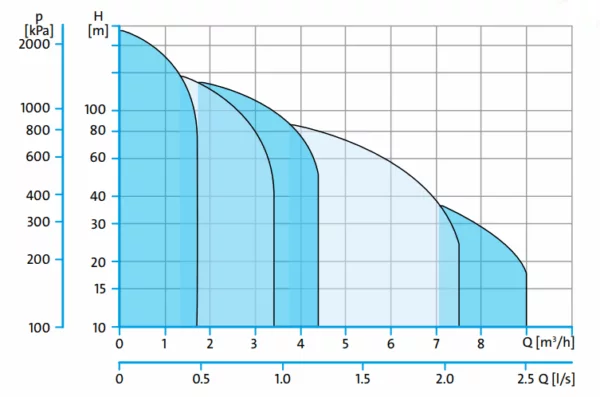

SQ3 curve and tech data

Download
