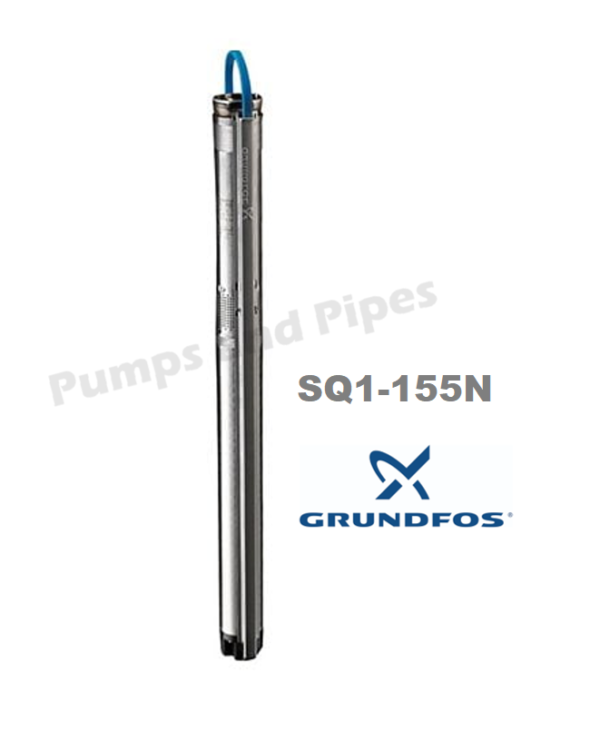

SQ1-155N Grundfos 3inch Submersible Bore Pump Unit With Standard Lead & 80m & 120m Cable
$2,667.50 – $3,987.50
SQ1-155N is suitable for domestic water supply, tank filling and irrigation
SQ1-155N offers the following features dry running protection and soft starting
Flow rate: 16 lpm @ 180 metres (220 gph)
Power supply: 230Volt AC single phase
Motor details: 1.85 kW single phase FLC 10.7 A
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
SQ1-155N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ1-155N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.
Flow rate: 6.6 lpm @ 227 metres (88 gph)
Flow rate: 16 lpm @ 180 metres (220 gph)
Flow rate: 23 lpm @ 130 metres (300 gph)
Power supply: 230Volt AC single phase
Motor details: 1.85 kW 50HZ 10,700rpm, IP68 rated FLC 10.7 A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm
Manufacturer’s warranty: 2 years Made in Mexico
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 80 × 10 × 10 cm |
| Brand | GRUNDFOS |
| Size | SQ1-155 + 120m cable 230Vac submersible pump unit, SQ1-155 + 80m cable 230Vac submersible pump unit, SQ1-155 230Vac submersible pump unit |
