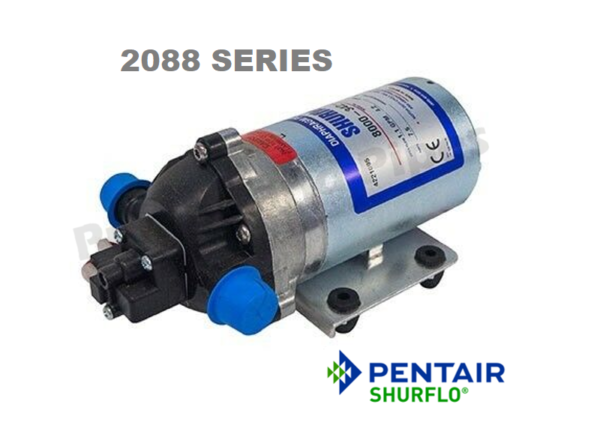

Shurflo 2088 Series 12Vdc Diaphragm Pressure Pump 11.3 lpm
$380.00
Shurflo 2088-343-135 pressure pump is a Positive Displacement Pump
Flow rate: 11.3 lpm @ 240 kPa (30 psi)
Motor: 12 Vdc FLC 8.0 amps
Pressure switch setting: cut out 45 PSI, cut in 25 PSI
Self-Priming up to 2.0 meters
Pump connections: 12mm (1/2″) MI BSP thread
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
Shurflo 2088-343-135 pressure pump is a Positive Displacement 3 Chamber Diaphragm Pump
Check Valve: (1-Way Operation) Prevents Reverse Flow
Flow rate: 11.3 lpm @ 240 kPa (30 psi)
Motor: 12 Vdc FLC 8.0 amps
Pressure switch setting: cut out 45 PSI, cut in 25 PSI
Liquid Temperature: maximum 77 deg C
Self-Priming up to 2.0 meters
Max. Inlet Pressure : 2.1 bar or 210 kPa
Pump connections: 12mm (1/2″) MI BSP thread
Material of Construction:
Plastics- Polypropylene
Valves- Viton
Diaphragm- Santoprene
Fasteners- Zinc Plated Steel
Net weight: 2.18 Kg
Duty Cycle: Intermittent (See Temperature Rise Chart)
Typical Applications: Agricultural Spraying
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 40 × 20 × 20 cm |
| Brand | SHURflo |
