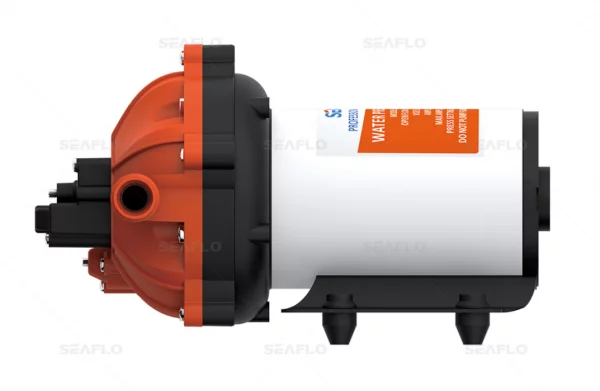

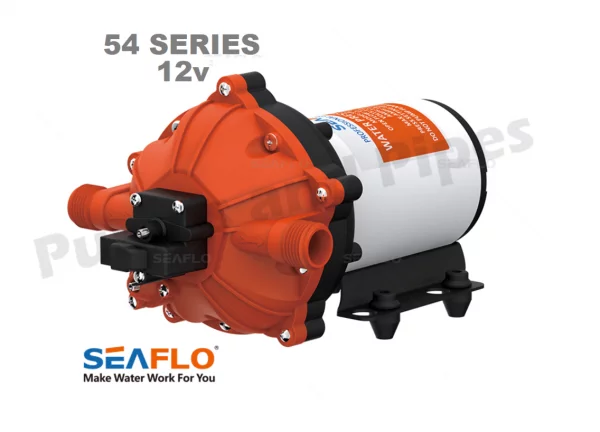

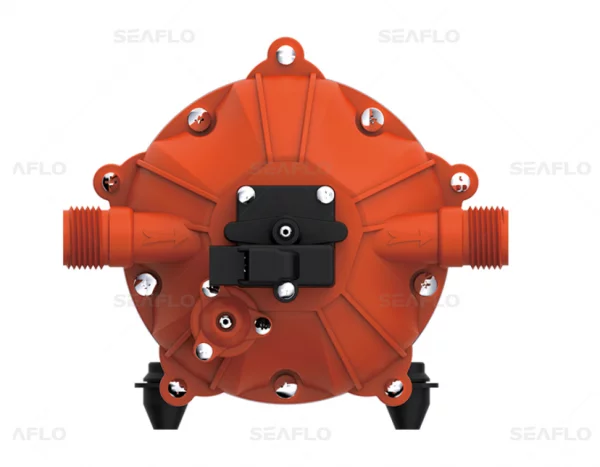

SEAFLO 54 Series 12Volt DC Diaphragm Pump For Boats Vans & RV’s

SEAFLO 54 Series 12Volt DC Diaphragm Pump For Boats Vans & RV’s

$297.00

In stock

$297.00

SEAFLO 54 series 12Vdc pressure system
Pump performance: 18.9 lpm @ 420 kPa
Self priming diaphragm pump
Applications; RV, boating pump or water supply
Pressure switch control cut in/cut out

Manufacturer’s warranty:  2 years

SKU: SFDP1-050-060-54

Description

SEAFLO 54 series automatic pressure pump for your boat, RV or water supply with 3 year warranty and includes a free filter.

Pump performance:  18.9 lpm @ 420 kPa (60psi)

Positive Displacement Pump
Quiet & Smooth Operation
Industry Standard mount pattern
Threaded connections with multiple easy connect fittings suitable for almost an outlet
Corrosion resistant valves
Self-priming
Rubber mounts for noise reduction

SPECIFICATIONS
Includes: 2 x 1/2″ barb fitting, rubber mounts
Housing Material: Nylon/Polypropylene
Diaphragm Material: Santoprene
Valve/Seal Material: EPDM/Viton
Voltage: 12Vdc FLC 17.0 amps
Control Type: Pressure Switch
Duty Cycle: Intermittent
Liquid Temperature: 60°Celcius MAX
Inlet/Outlet Ports: ½” MNPT
 Priming Capabilities: 1.8m suction lift

Manufacturer’s warranty:  2 years

Additional information

Weight 5 kg
Dimensions 30 × 17 × 15 cm

SEAFLO 54 Diaphragm Pump Manual

Download
