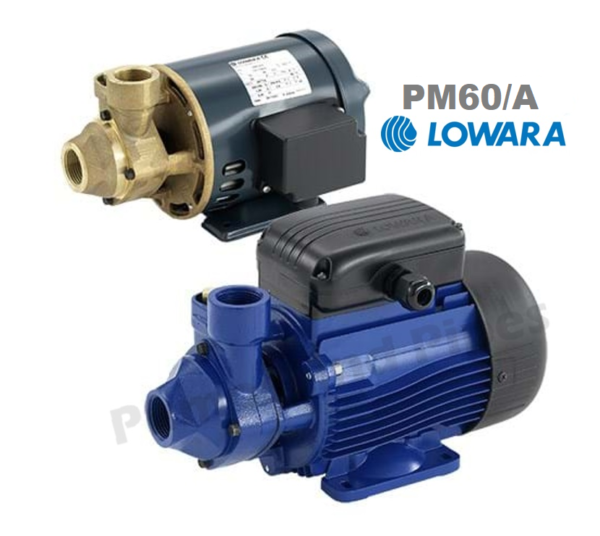

PM60/A Peripheral Turbine Single and P60/A Three Phase Pump

PM60/A Peripheral Turbine Single and P60/A Three Phase Pump

$905.00$910.00

In stock

$905.00$910.00

Clear
View cart

Peripheral pumps capable of developing high heads using low powered motors.
Pump performance:  20lpm @ 600 kPA
Pump performance:  40lpm @ 400 kPA
Pump performance:  60lpm @ 170 kPA

Motor 1.1kW single phase FLC 8.0A  50/60Hz
Motor 1.1kW three phase FLC 2.9A  50/ 60 Hz
Maximum operating pressure: 8 bar
Temperature of pumped liquid: -10°C to +80°C

Manufacturer’s warranty: 2 year  Made in Italy

SKU: PKM40/A-1-1-1-1

Description

Water distribution, Washing, Boiler, Hot water systems, Pressure boosting and water transfer
Peripheral pumps capable of developing high heads using low powered motors.
P series pump hot water up to 80°C

Pump performance:  shut off head @ 760 kPA
Pump performance:  20lpm @ 600 kPA
Pump performance:  40lpm @ 400 kPA
Pump performance:  60lpm @ 170 kPA

Specifications
Power supply:
1.1kW single phase FLC 8.0A  50/60Hz
1.1kW three phase FLC 2.9A  50/ 60 Hz
Maximum operating pressure: 8 bar
Temperature of pumped liquid: -10°C to +80°C
Maximum ambient temperature: 40°C
Insulation class: F
Protection: IP55
Materials
Pump body: Cast iron
Adapter: Cast iron
Impeller: Bronze
Mechanical seal: Ceramic/Carbon/NBR
Fill plugs: Brass
Elastomers: NBR
Pump connections: Inlet and Outlet 25mm FI BSP

Manufacturer’s warranty: 2 year  Made in Italy

Additional information

Weight6 kg
Dimensions30 × 20 × 20 cm
Size

Single phase, Three phase

P Series Technical data

Download
