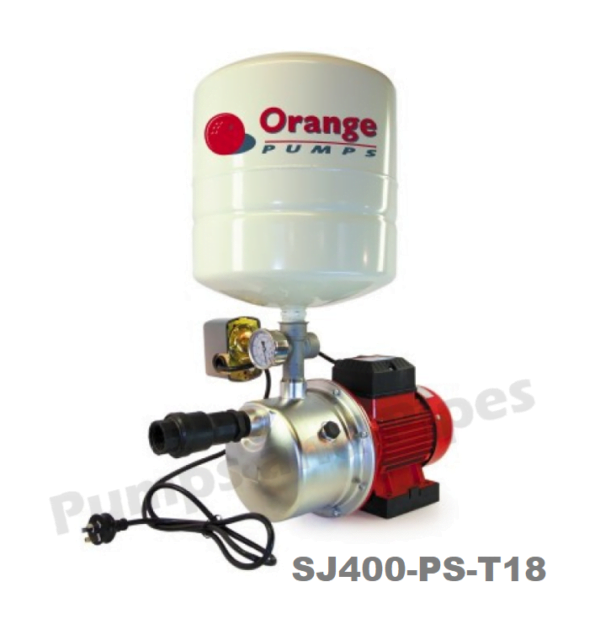

Orange SJ400-PS-T18 Pressure Switch Pressure Tank Pressure Pump

Orange SJ400-PS-T18 Pressure Switch Pressure Tank Pressure Pump

$660.00

In stock

$660.00

The SJ range of pressure switch models come with the 18 litre Pressure Tank
In areas where the voltage fluctuates or the electricity is prone to brown outs and spikes the mechanical switch is less likely to be damaged than the electronic switches.

Pump Performance:  Flow rate:  40lpm @ 320 kPa
Flow rate:  60lpm @ 270 kPa
Motor Specifications:  0.75kW single phase FLC 5 amps
Pump End:  Self Priming Jet pump with jet assist

Manufacturer’s warranty:  2 years
AS/NZS 4020 Compliant is an Australian standard for drinking water



SKU: SJ400-PS-T18

Description

SJ400-PS-T18 pressure switch pump come with an 18 litre Pressure Tank.
The pressure tank stores water which can be used to fill a kettle or flush a toilet without the pump turning on, which saves energy and reduces wear and tear on the motor.
The pressure switch settings can be adjusted depending upon the installation to increase water draw off or reduce any pressure fluctuations caused by pump cycling.
In areas where the voltage fluctuates or the electricity is prone to brown outs and spikes the mechanical switch is less likely to be damaged than the electronic switches.

AS/NZS 4020 Compliant is an Australian standard for potable water

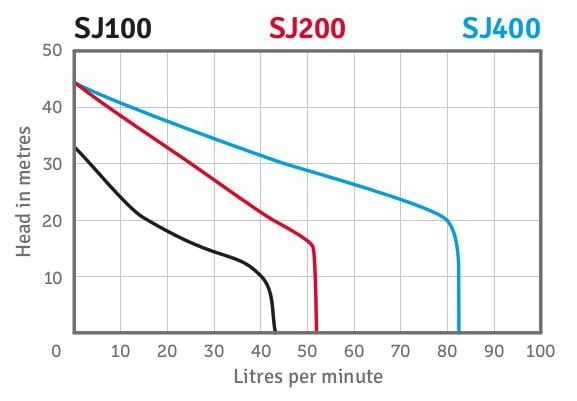

Pump Performance:  Shut off head at 440 kPa
Flow rate:  20lpm @ 380 kPa
Flow rate:  40lpm @ 320 kPa
Flow rate:  60lpm @ 270 kPa
Flow rate:  80 lpm @ 200 kPa

Power Supply:   240Volt single phase
Motor Specifications:  0.75kW 1.0HP single phase FLC 5 amps IP55 rated
Pump End:  Self Priming Jet pump with jet assist
Pump Connections:  25mm FI BSP inlet and outlet
Maximum Water Temperature: 65 degC

Manufacturer’s warranty:  2 years



Additional information

Weight 15 kg
Dimensions 50 × 30 × 40 cm
