Description

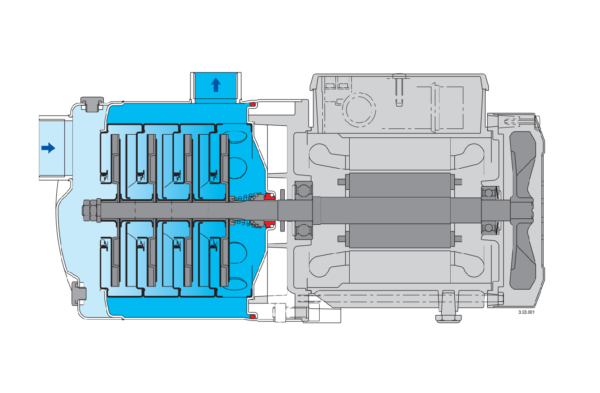

Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top.
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal)

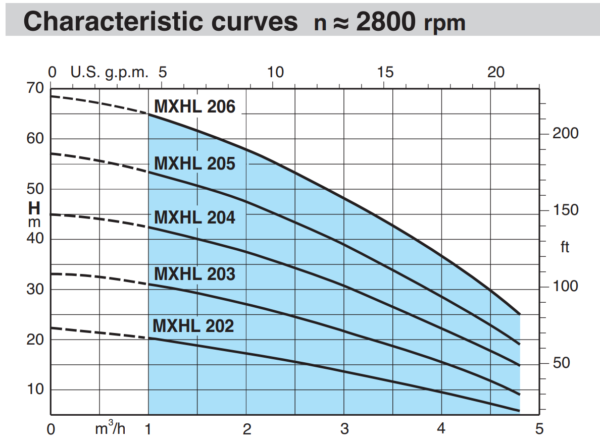

MXHLM 206 Pump Performance: 45 lpm @ 47 metres
MXHLM 205 Pump Performance: 45 lmp @ 39 metres
MXHLM 204 Pump Performance: 45 lmp @ 30 metres
MXHLM 203 Pump Performance: 45 lpm @ 22 metres
MXHLM 202 Pump Performance: 45 lpm @ 14 metres
Applications
For water supply.
For clean liquids, without abrasives, which are non-aggressive
for stainless steel (with suitable seal materials, on request).
Universal pump, for domestic use, for civil and industrial
applications, for garden use and irrigation
Operating conditions
Liquid temperature from – 15 °C to + 110 °C.
Ambient temperature up to 40 °C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty
Motor
2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
MXHLM: single-phase 230 V ± 10%, with thermal protector

Manufacturer’s warranty: 2 years  Made in Italy
