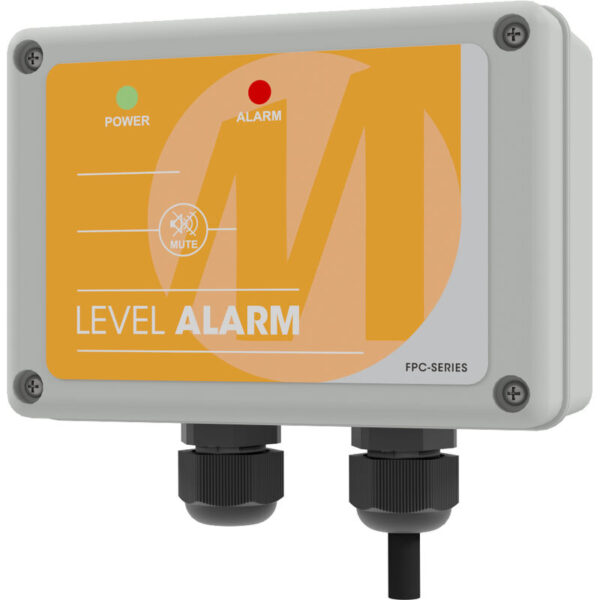

Level Alarm Panel Basic – Single Phase 240V – Model FPC-12650 – Float Options – Low and High Level
$227.00 – $317.00
Level alarm – Provides warning indication and alarm when a water storage tank is empty or full
Enclosure: IP54 rated, poly carbonate enclosure
Protection: Low voltage control and input circuitry
Level alarm keypad interface: Indicator lights for power on, level alarm
Alarm mute/reset/test button

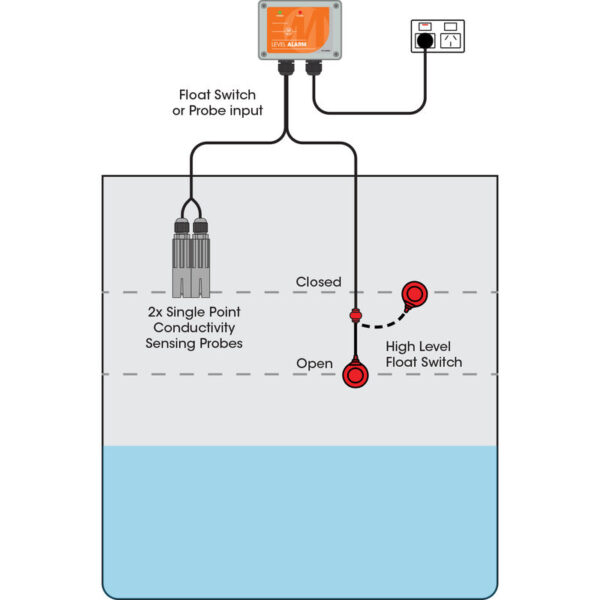

Digital 12Vdc input for float switch or conductivity probes
Outputs: BMS volt free output for common fault (NO & NC)
Included with panel: 10 Amp 3 pin 1m power supply lead (230Vac)
Float switch not included as standard but available as option
Manufacturer’s warranty: 12 months
- Description
- Additional information
- Downloads
Description
Level alarm – Provides warning indication and alarm when a water storage tank is empty or full
Auto-silencing alarm – If not muted, the buzzer will silence after 5 minutes, then sound briefly every 5 minutes (this feature can be disabled if a continuous alarm is required)
Product Features
Enclosure: IP54 rated, poly carbonate enclosure
Protection: Low voltage control and input circuitry
Control & interface: Audible (buzzer) alarm
Level alarm keypad interface: Indicator lights for power on, level alarm
Alarm mute/reset/test button
Level alarm PCB control module
Inputs: Single phase (230Vac) power supply
Digital 12Vdc input for float switch or conductivity probes
Outputs: BMS volt free output for common fault (NO & NC)
Included with panel: 10 Amp 3 pin 1m power supply lead (230Vac)
Float switch is not included as standard however available as an option
Manufacturer’s warranty: 12 months
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 20 × 30 cm |
| Size | FPC-12650 with 10 metre float, FPC-12650 with 20 metre float, FPC-12650 with 5metre float, FPC-12650 without float |
