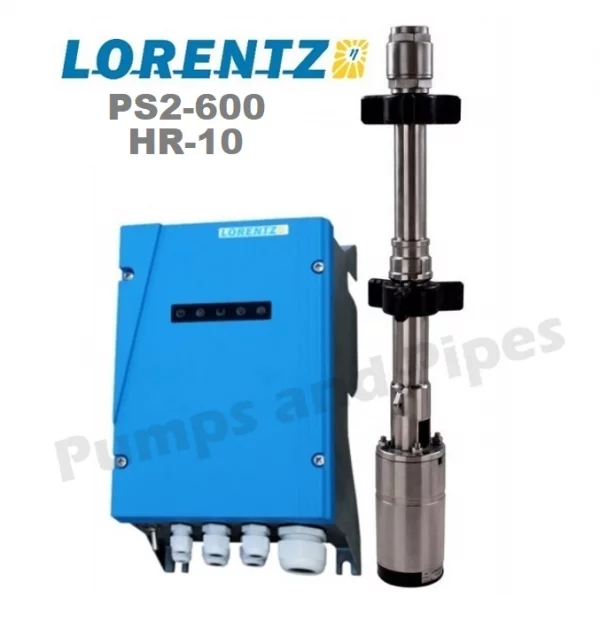

Lorentz PS2-600 HR-10 Helical Rotor Submersible Solar Pump
$6,400.00
HR-10 Helical Rotor pump, Ecodrive DC motor and PS2-600 controller
Flow rate up to 1,500 litres per hour @ 80 metres

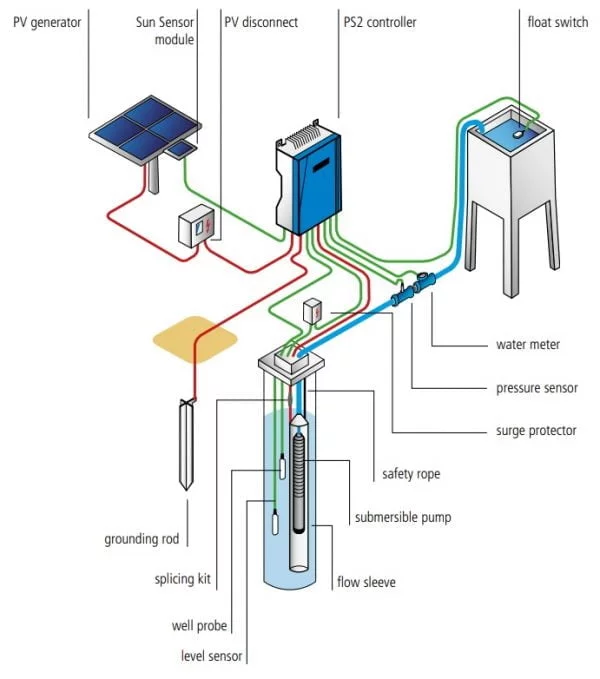

This combination is suitable for installation in 4″ PVC bore or floating in a dam
Manufacturer’s warranty: 3 years
- Description
- Additional information
- Downloads
Description
Lorentz DC powered helical rotor has been designed specifically to pump water efficiently using solar power

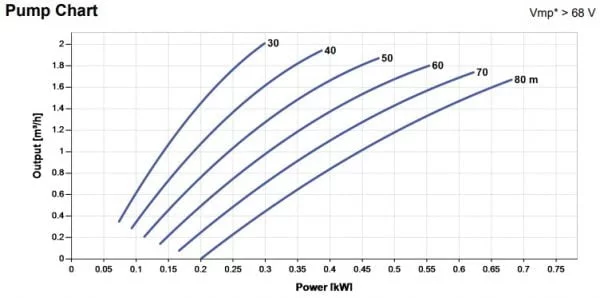

PS2-600 HR-10 Performance
Flow rate: 8000 litres per day @ 50 meters panels required 2 x 330 watt solar panels
Flow rate: 9000 litres per day @ 80 meters panels required 3 x 330 watt solar panels

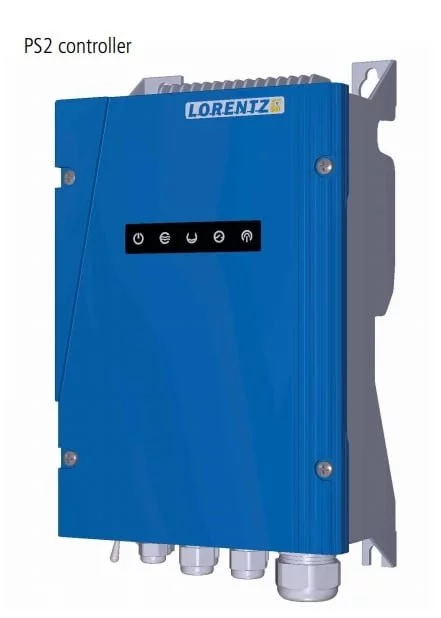

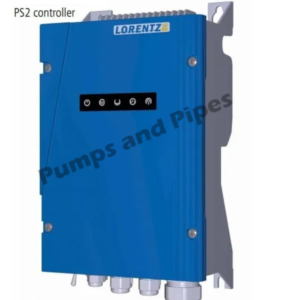

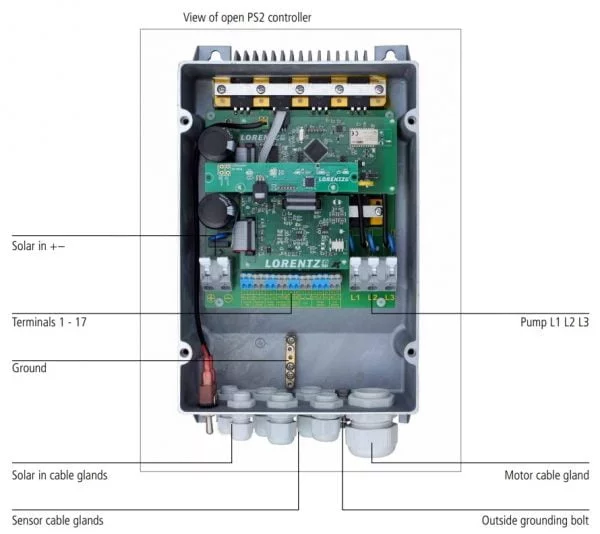

DC Controller: Lorentz PS2-600 DC controller
DC motor: Lorentz ECDRIVE 600-HR 0.7 kW IP68 max 13 amps 3300 rpm 95mm diameter water filled motor
Pump End: HR-10 helical rotor 304/316 ss with rubber stator
Pump connection: 32 mm FI BSP
Manufacturer’s warranty: 3 years
Additional information
| Weight | 29.1 kg |
|---|---|
| Dimensions | 35.4 × 14.7 × 77.1 cm |
| Brand | Lorentz |
