Red Level Float Switch 9006 Series With Lead And Weight – Pump Level Float Switches – FSW-12530 FSW-12532 FSW-12533 FSW-12534

Red Level Float Switch 9006 Series With Lead And Weight – Pump Level Float Switches – FSW-12530 FSW-12532 FSW-12533 FSW-12534

$46.00$250.00

In stock

$46.00$250.00

Reviews Summary by AI:

Float Switches – 9006 Series

Sliding detent action’ obviates wave induced oscillation, maintaining consistency in switching level accuracy
Level float switch can be used for emptying and filling a tank
Liquid temperature:  minimum 5 degree C – maximum 60 degree C
Protection:  IP68 @ 20 meters depth
Contact type:  Microswitch with NO and NC contacts
Switching angle:  25˚ (from horizontal)
Cable material and size:  Neoprene rubber  ø7mm / 3 x 0.75mm² conductors

Manufacturer’s warranty:  12 months

SKU: N/A
Clear

Description

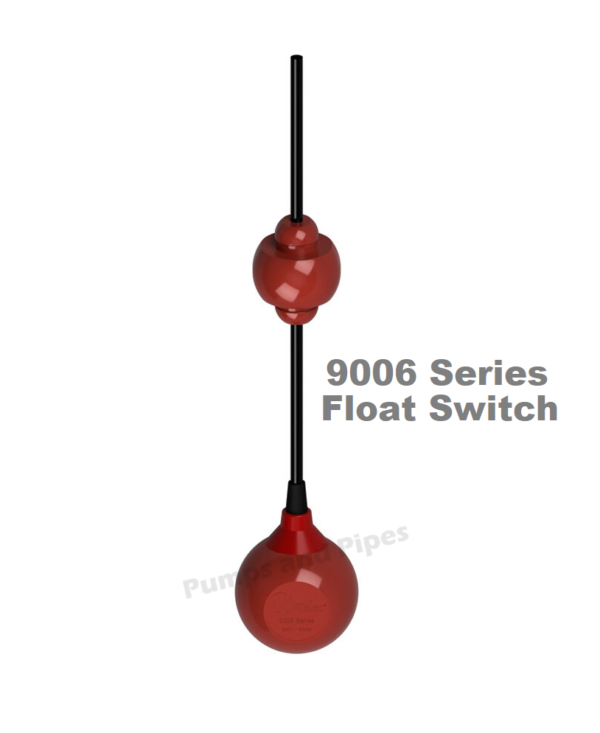

Float Switches – 9006 Series

Smooth, robust ABS switch housing reduces adhesion of foreign materials
Sliding detent action’ obviates wave induced oscillation, maintaining consistency in switching level accuracy

Liquid temperature:  minimum 5 degree C – maximum 60 degree C
Liquid density:  Minimum .65 g/cm, maximum 1.5 g/cm
Protection:  IP68 @ 20 meters depth
Working pressure:  .35MPa
Switching speed:  600/min
Contact life:  10,000 switches
Contact type:  Microswitch with NO and NC contacts
Switching angle:  25˚ (from horizontal)
Maximum voltage:  240Vac 50/60Hz
Maximum run current:  6 Amps (COS 0)
Cable material and size:  Neoprene rubber  ø7mm / 3 x 0.75mm² conductors
Float housing material:  ABS – Acrylonine butadiene styrene
Chemical resistance:  Acid – Good, Alkaline – Good, Petro – Good
Specifications are subject to change without notice |

Manufacturer’s warranty:  12 months

Additional information

WeightN/A
DimensionsN/A
Size

10m Lead, 2.5m lead, 20 metre lead, 30m Lead, 50m Lead, 6m lead

Brand

Matelec

9006 Series data

Download
