Description

Hardware Features

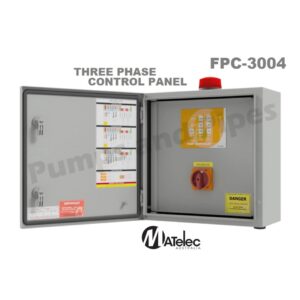

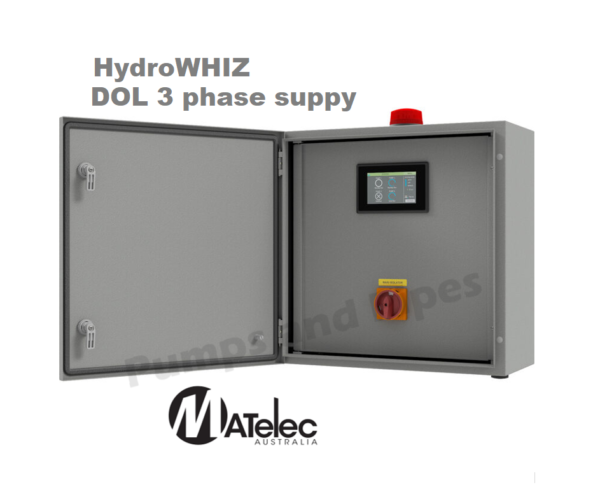

Enclosure:
IP56 rated, powder coated mild steel enclosure with inner door and removable gland plate
Protection:
Pad-lockable mains power isolator switch
Circuit breaker protected low voltage control and input circuitry
Individual pump isolation
Contactor and thermal overload protection of pump motors
Din rail mounted terminal connections
Control & interface:
HydroWHIZ colour touch screen HMI
HydroWHIZ PCB control module
Visual (strobe) and mutable audible (buzzer) alarms
DOL per pump
Inputs:
Three phase (400Vac) power supply
Analog 4-20mA input for level, pressure or temperature transducer
Up to 8x digital 24Vdc inputs for low, stop, start, standby start and high float switches, pressure switches or thermostats, system enable/disable input and a low flow switch
Thermal switch inputs per pump (three phase only)
Outputs:
1-6 pump outputs
BMS volt free output for common fault
Analog 0-10V output (mirrors analogue input)
Output for solenoid valve available on request
Modbus RTU Serial RS485 connections for SCADA
Function Features
Pump control – Control of two pumps
Pump limiting – For limiting max flow or power requirements
Duty sharing and alternation – Adjustable duty change period and bumpless transfer
Pump staging and destaging – Additional pumps are staged into operation to maintain setpoint and destaged when no longer required
Staggered pump start and stop – Prevents excessive current draw and reduce water surge or hammer
Manual control – Manual modes for system and pumps with 10 minute timeout to revert back to auto mode
System types – Level control
Control directions – For emptying of tank

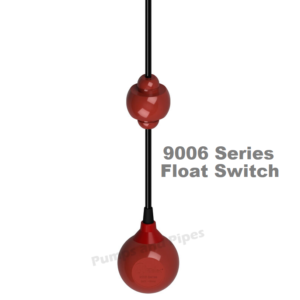

Level control mode – Controlled by 4-20mA hydrostatic level transducer and/or low, duty stop, duty start, standby starts and high level float switches, submerged in a tank or pit
Maintain minimum level – Ensures minimum tank level is maintained in (specific to level mode, empty direction)
Sleep modes – Sleep can be enabled to allow pumps to sleep when setpoint is reached, or disabled so one pump is always running to circulate water
Fault Protection
Protection modes – Apply to most protections, and include alarm (alarm only), lockout (alarm and pump shutdown) and inhibit (pump shutdown only, no alarm)
High and low level, pressure or temperature protection – Alarm and/or shutdown on high and low level, pressure or temperature depending on the system type, low pressure protection features automatic restart attempts
Auxiliary tank level protection – Pump shut-down on supply tank low or destination tank full
Pump anti-seize protection – Runs pumps periodically during low use to prevent seizing
Maximum run protection – Activates after pumps run at max speed for 30 mins, protecting the system in the event of a burst pipe, with automatic restart attempts
Pump cycle protection – Activates if system goes to sleep but wakes up within 5 seconds, 10 times in a row, due to a faulty non-return valve or similar fault preventing the system from maintaining pressure
Feedback signal fault protection – Shuts down all pumps in the event of a transducer failing
Pump overload protection – Shuts down pump/s on overload, with automatic duty alternation
Pump thermal switch protection – For three phase pumps
Interface Features
Main screen with system status, auto/off/manual modes
Pump screens with status, logged data and auto/off/manual control
Alarms screens with mute/reset, date & time stamped historical faults
Logged data with system event & fault counts, pump starts, run hours
Analog feedback value trend graph
Streamlined, user friendly system setup process
System diagnostics for easy fault finding, factory reset
Manufacturer’s warranty:  12 months  Made In Australia
