Description

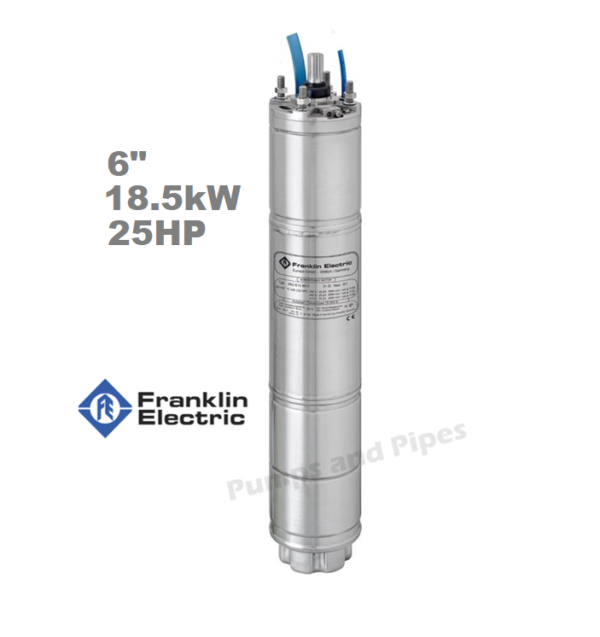

18.5kW 6″ AISI316 Stainless Steel Submersible Motor can be installed on all wet ends with Spline Coupling.
Can be used on following pump ends: Franklin, Lowara, Southern Cross, TKL, Goulds and Grundfos

Specifications:

• Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
• Removable Water Bloc™ lead connector
• Cable material according to drinking water regulations (VDE/ACS/KTW approved)
• All motors are prefilled with water and 100% tested
  Technical Specifications:

• 18.5 kW 6″ NEMA flange, Outside Diameter 138 mm
• Starts per hour: max. 10 vertical or horizontal installation
• Standard voltage: 415 V/50Hz FLC  38.0 Amps
• Voltage tolerance 50 Hz: 415 Volt AC -10% / +6%
• Insulation: Class F Rated ambient temperature: 30°C ,Cooling flow: min. 0.16 m/s
• Single Motor lead in 4 meter length (VDE/ACS/KTW approved)
• Types of starting Soft Starter, VSD or VFD, Auto Transformer (please call to discuss)

Please call for pricing, more information or to discuss

Manufacturer’s warranty:  1 years   Made in USA
