Description

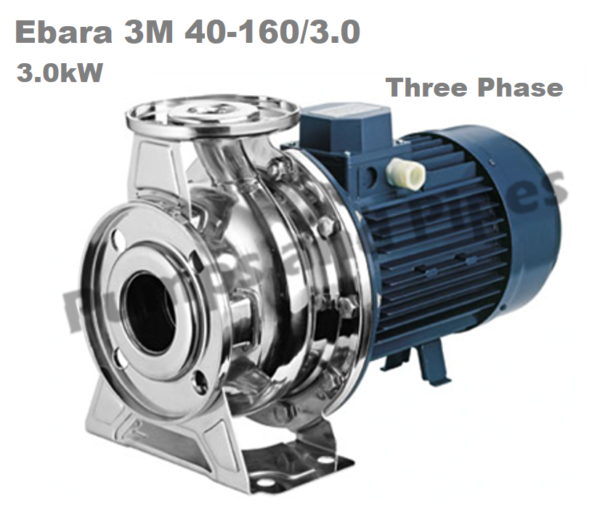

Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

Pump performance:  Shut off head 310 kPa  no flow maximum pressure
Pump performance: 200 lpm @ 280 kPa
Pump performance: 400 lpm @ 250 kPa
Pump performance: 600 lpm @ 180 kPa  end of curve

Material of construction:  SS/SS/SS
Power supply:   3.0kW 415V three phase 50hz FLC 6.4A
Impeller material: AISI304 stainless steel
Casing material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN40 Flanged
Starting method:  VSD or soft starter (DOL check local electrical supply)
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy
