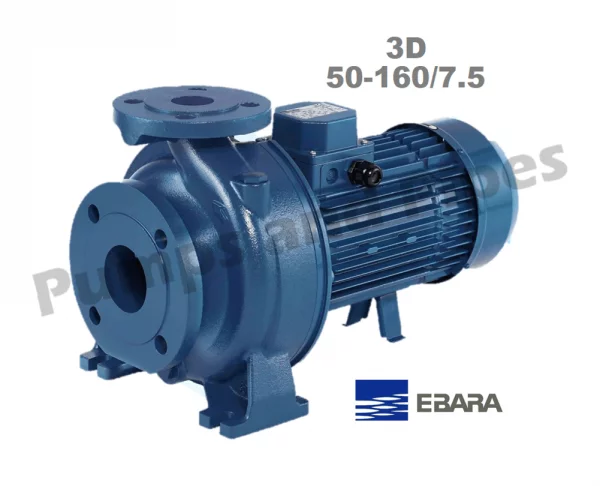

Ebara 3D 50-160/7.5 10HP Three Phase Pump Centrifugal Motor Pump for Irrigation and Water Transfer

Ebara 3D 50-160/7.5 10HP Three Phase Pump Centrifugal Motor Pump for Irrigation and Water Transfer

$2,550.00

In stock

$2,550.00

Reviews Summary by AI:

End suction centrifugal pump which is used for industrial and factory water transfer, wash down and irrigation pump
Pump performance:  1000 lpm @ 300 kPa
Power supply:   7.5kW 415V three phase 50hz FLC 13.9A
Manufacturer’s warranty:  2 years  Made in Italy

SKU: 3D50-160/7.5

Description

End suction centrifugal pump which is used for industrial and factory water transfer, wash down and irrigation pump

Pump performance:  Shut off head 390 kPa  (52 psi) no flow maximum pressure
600 lpm @ 370kPa
1000 lpm @ 300 kPa
1200 lpm @ 270 kPa

Material of construction:  CI/SS/SS
Power supply:   7.5kW 415V three phase 50hz FLC 13.9A
Impeller material: AISI304 stainless steel
Impeller diameter: 200 mm
Suction connection:  DIN65 Flanged
Discharge connection:  DIN50 Flanged
Starting method:  VSD or soft starter (DOL check local electrical supply)
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight65 kg
Dimensions70 × 40 × 40 cm
Brand

Ebara

Ebara 3D 50-160-75 curve

Download
