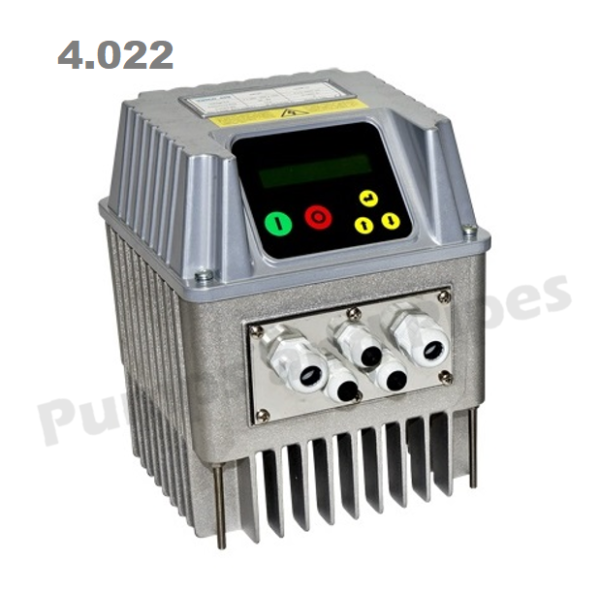

E-Tech DrivE-Tech 4.022 VSD 2.2kW Three Phase Motor Mount VFD For Pumps

E-Tech DrivE-Tech 4.022 VSD 2.2kW Three Phase Motor Mount VFD For Pumps

$2,370.00

In stock

$2,370.00

View cart

DrivE-Tech VSD Variable Speed Drive 2.2 kW
360 – 440Vac three phase 50/60hz FLC 6 amps
Motor mount and wall mount versions
Constant pressure control
Manufacturer’s warranty:  2 years  Made in Italy

SKU: DrivE-Tech 4.022

Description

DrivE-Tech range of variable speed drives are cost-effective, fully featured motor mounted units which can be retrofitted to many types of pump.

Pump controlled by VFD’s:  Multistage, end suction pumps, submersible bore pumps and most centrifugal pumps

Application designs:  Constant Pressure Potable water, building water supply, water for filtration and RO plants, commercial watering, irrigation and water transfer

Power supply:          360-440 Volt three phase 50/60hz 2.2 kW FLC 6.0 Amps
Motor Protection:   Over and under Voltage , Overload adjustable, Adjustable max and min frequency, phase failure
Pump protection:    Dry run protection, High and low pressure alarm,
Alarm response:      Audible alarm, Shut down and auto re-start
Mounting:                 Wall mounting and motor mounting options
Cascade number:    up to four (4) units can be wired together for multi pump system
Control options:      Pressure control, level control, temperature control
Transducer:              4-20mA 0-10v many options

Programming:  Contact us for information on programming and fault analyses

Manufacturer’s warranty:  12 months  Made in Italy

Additional information

Weight6.0 kg
Dimensions20 × 20 × 30 cm
Brand

Franklin
