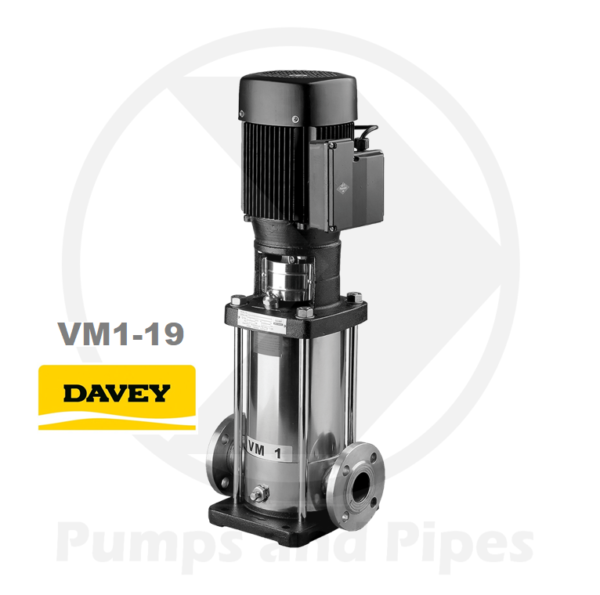

Davey VM1-19 1.5kW Single Phase Multistage Jacking Pump

Davey VM1-19 1.5kW Single Phase Multistage Jacking Pump

In stock

Vertical multistage centrifugal pump which is used for Jacking pumps and Boilers

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  24 lpm @ 1120 kPA
Power supply:   1.5kW 240V three phase 50hz FLC 11 amps
AS4020 approved for use in drinking water
Manufacturer’s warranty:  2 years

SKU: VM1-19

Description

Vertical multistage pump which is used for boiler feed, water treatment, fire jacking and water supply applications

Pump performance:  Shut off head  1380 kPA  no flow – maximum pressure
Pump performance:  12 lpm @ 1300 kPA
Pump performance:  24 lpm @ 1120 kPA
Pump performance:  30 lpm @ 940 kPA


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   1.5kW 240/1/50 single phase FLC 11.0 amps
Impeller material: AISI304 stainless steel
Suction connection:  DIN25 Flanged
Discharge connection:  DIN25 Flanged
Starting method:  DOL
Maximum temperature:  90 deg C
Maximum working pressure: 25bar
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight22 kg
Dimensions80 × 30 × 40 cm
Brand

Davey

VM1 curve

Download

VM Dimension table

Download

VM1 pump dimension

Download
