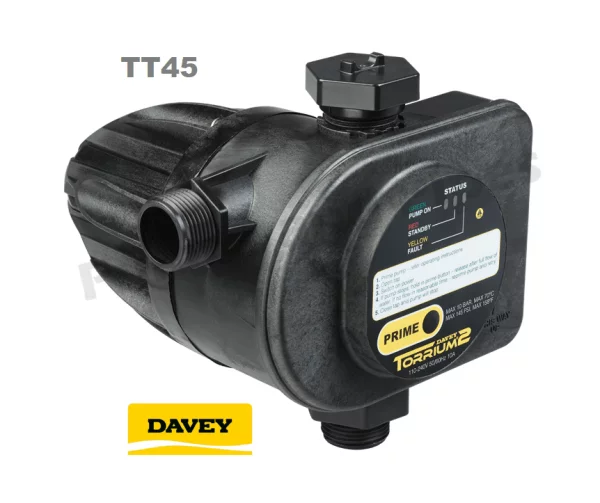

Davey Torrium TT45 Controller Pressure Switch
Torrium 2 is an intelligent controller designed to supply pressure boosted water with constant flow and even water pressure to domestic households
Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Power Supply: Single Phase, 240V ± 10% FLC 10 amps
Maximum motor size – 1.8kW (2.4 hp)
Surge Protection Metal oxide varistor
Please call for a price : 07 3208 9499
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
Torrium 2 TT45 is an intelligent controller designed to supply pressure boosted water with constant flow and even water pressure to domestic households.
Torrium 2 has three simple LED indicators
• Red LED – the system is in standby mode
• Green LED – the pump is running
• Yellow LED – fault condition
Maximum system pressure: 1000 kPa Capacities to 200 lpm
Recommended pump shut-off head range TT45 ……. 150 to 450 kPa
Torrium2 cut-in pressure is normally 80% of the pump’s last shut-off head.
Maximum ambient temperature: 50º C
Water Temperature Range: 1º C – 70º C
Power Supply: Single Phase, 240V ± 10%, 50hz FLC 10 amps
Maximum motor size – 220V 1.8kW (2.4 hp)
Surge Protection Metal oxide varistor
Manufacturer’s warranty: 2 years
Additional information
| Brand | Davey |
|---|
