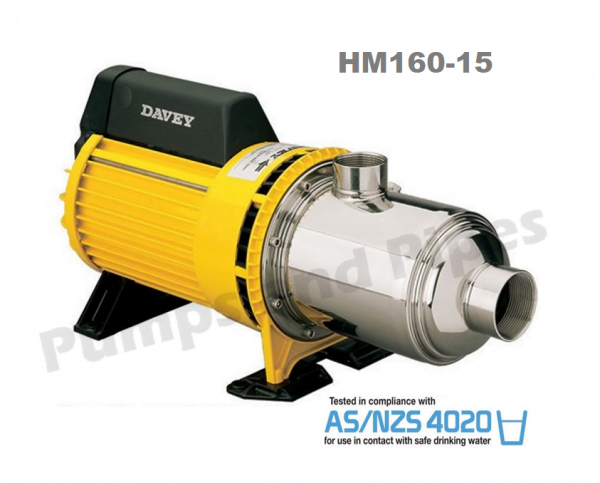

Davey HM160-15/3 Three Phase 1.5kW SS Multistage Pump

Davey HM160-15/3 Three Phase 1.5kW SS Multistage Pump

In stock

Davey HM160-15 Three Phase

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Pump performance: 150 lpm @ 37 meters
1.5kW motor FLC 3.2 amps
Suction 40mm FI BSP Discharge 32mm FI BSP
Wetted materials AISI304 Stainless steel
Manufacturer’s warranty:  2 years

SKU: HM160-15/3


Specific applications include:
> Water supply, boosting and transfer
> Irrigation, turf watering and wash down
> Emptying/filling reservoirs or tanks
> Water treatment (demineralisation, filtering etc)
> Commercial washing equipment

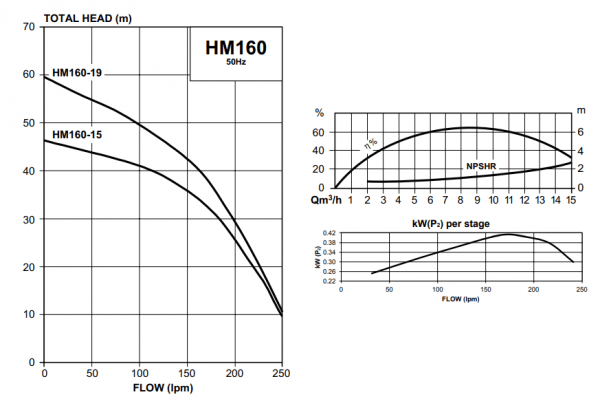

Pump performance:  150 lpm @ 370 kPa
Flow rate:  zero flow @ 470 kPa   (shut off head)
Flow rate:  200 lpm @ 210 kPa
Flow rate:  240 lpm @ 120 kPa    End of curve

Maximum operating pressure 1000 kPa
Maximum suction pressure 600 kPa
Temperature range -15º to 105ºC
Maximum ambient temperature 50ºC
Supply Voltage: Three phase 415V ±10%
Motor details: 400/3/50 IP56 2 pole Class F

HM range has axial suction and vertical discharge with a compact design for ease of install.

Features include:

  • All stainless-steel pump componentry for better corrosion and abrasion resistance, low noise output and reduced power consumption
  • Air purging valve and stage porting for easier priming, and less susceptibility to air leaks
  • Impellers are mounted directly on to the extended motor shaft maximising performance per stage, and increased wear resistance – leading to a long motor + pump life
  • Complete stainless casing attached to motor bracket at 8 points with an o-ring seal, for better sealing
  • Totally enclosed fan cooled (TEFC) electric motor with built in thermal overload protection and automatic reset

Manufacturer’s warranty:  2 years

Additional information

Weight23 kg
Dimensions53 × 23 × 28 cm


Davey HM Horizontal Datasheet
