CSS4-40 CSS4-50 CSS4-60 PumpMaster Stainless Steel Single Phase Transfer Pumps – Replaces CH4-40 CH4-50 CH4-60
$967.00 – $1,272.00
These pumps feature excellent hydraulic performance, are capable of generating a high pressure with minimal power consumption, a very low noise while running, and are particularly suited for use in domestic, light civil and industrial applications.

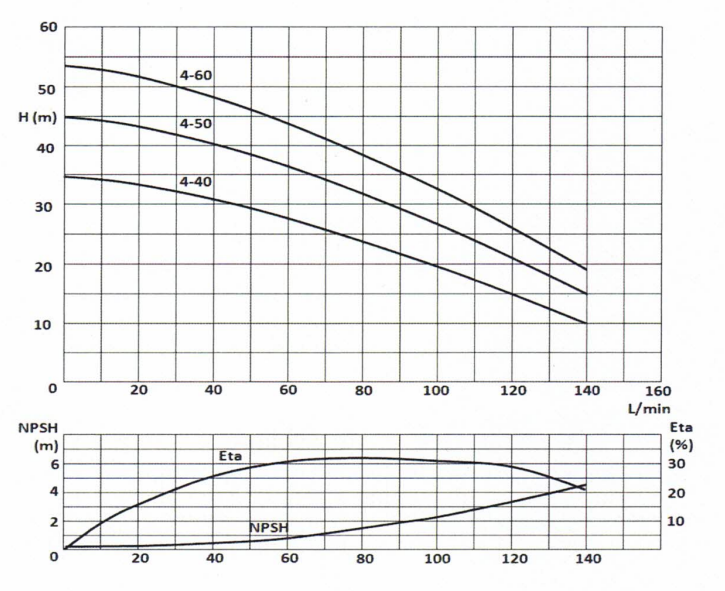

Performance Curve: CSS4-40
Maximum Head – 35 meters| Maximum Flow – 140L/min
Performance Curve: CSS4-50
Maximum Head – 45 meters | Maximum Flow – 140L/min
Performance Curve: CSS4-60
Maximum Head – 54 meters | Maximum Flow – 140L/min
Technical Data
Motor: 0.55 – 1.1kW, 240V Single Phase, 4.3 – 6.2Amps, 2850 rpm, 2-Pole, IP55
- Description
- Additional information
- Downloads
Description
CSS pumps feature excellent hydraulic performance, are capable of generating a high pressure with minimal power consumption, a very low noise while running, and are particularly suited for use in domestic, light civil and industrial applications.
Maximum liquid temp 90 Deg C
Maximum ambient temp 50 Deg C
Stage assembly’s included diffuser and impellers made of 304 Stainless-Steel, pump ends rom 304 Stainless-Steel, all elastomers in EPDM, and a high quality silicon carbon mechanical seal.
Pump end shaft in high grade 431 stainless steel.
Electric motor: TEFC, squirrel-cage, IP55 Class F
Single Phase motors filled with thermostat-controlled safety micro switches to avoid undesirable damages to the motor.
Performance Curve: CSS4-40
Maximum Head – 35 meters| Maximum Flow – 140L/min
Performance Curve: CSS4-50
Maximum Head – 45 meters | Maximum Flow – 140L/min
Performance Curve: CSS4-60
Maximum Head – 54 meters | Maximum Flow – 140L/min
Technical Data
Motor: 0.55 – 1.1kW, 240V Single Phase, 4.3 – 6.2Amps, 2850 rpm, 2-Pole, IP55
Material Of Construction – Pump Stainless AISI 304/413, Motor – Aluminium
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Size | CSS4-40 0.55kW Stainless Steel Single Phase Multistage Pump, CSS4-50 0.75kW Stainless Steel Single Phase Multistage Pump, CSS4-60 1.1kW Stainless Steel Single Phase Multistage Pump |
