Description

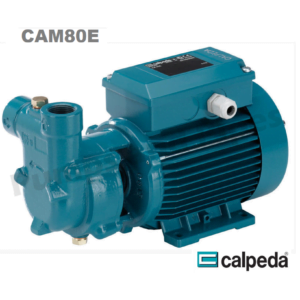

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.

Applications
For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
These pumps are well suited to be mounted in cooling and air-conditioning applications, circulation, boiler feed and water transfer

Pump Performance:  Shut off head 3750 kPa
Pump Performance:  80 lpm @ 1650 kPa
Pump Performance:  90 lpm @ 1400 kPa

Temperature range:  -10 degC to 90 degC

Operating conditions
Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40 °C.
Total suction lift up to 7 m.
Continuous operation @ 16 bar

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
TP132 : three-phase 400 V ± 10% up to 7.5 kW;
Insulation class F, Protection IP 54.
Classification scheme IE2 for three-phase motors 7.5kw
Constructed in accordance with: EN 60034-1; EN 60034-30.
EN 60335-1, EN 60335-2-41.

Manufacturer’s warranty:  2 years  Made in Italy
