Bianco BIA-INOX45CORE – 808393 – NXT INOX45 Constant Pressure Stainless Pump Replaces BIA-INOX45S2NXT Series

Bianco BIA-INOX45CORE – 808393 – NXT INOX45 Constant Pressure Stainless Pump Replaces BIA-INOX45S2NXT Series

$403.00

In stock

$403.00

Reviews Summary by AI:

Motor / power: 450W 240volt single phase
Max. flow: 50 litres per minute
Taps: 4 taps (calculated at 8 lt/min each tap)
Maximum Pressure: 380 kPA
Suction hose diameter: 25mm
Pump is now supplied as BIA-INOX45CORE , slightly different controller however dimension and performance the same
Manufacturer’s warranty:  2 years

AS/NZS 4020 Drinking Water Approved.

SKU: BIA-INOX45CORE

Description

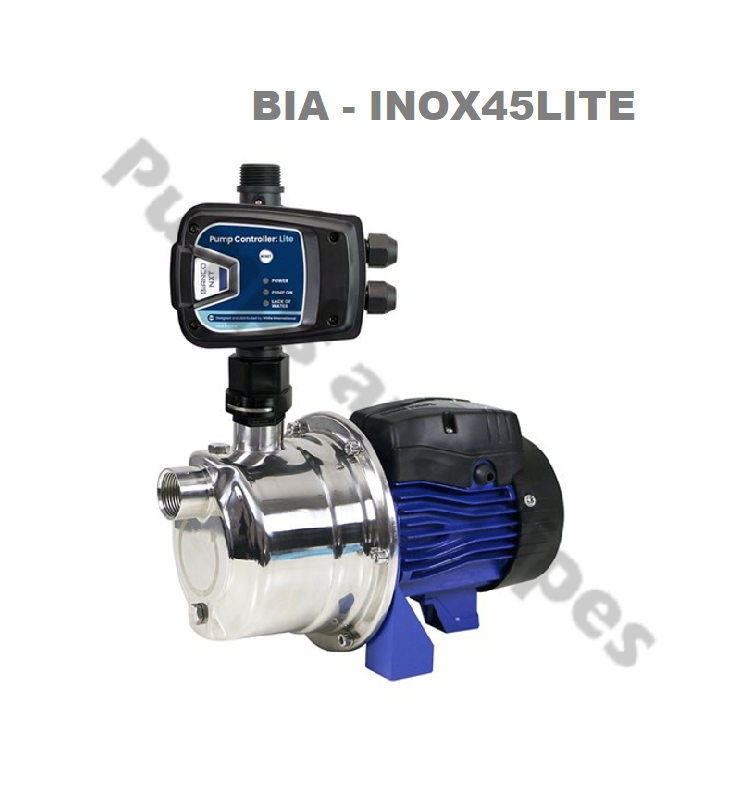

Inox pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type)
Self-priming ability provides excellent suction capacity of up to 9m
Used especially for supplying water to domestic installations.

The pump is characterised by:

• Automatic electronic pump control fitted and wired with plug
• Run dry protection to prevent pump damage
• Automatic electronic control has in-built check valve to prevent water backflow through the pump.
• 2.2bar pump cut in for greater versatility.
• Corrosion resistant pump body, diffuser and impeller to ensure pump durability
• High quality mechanical shaft seal and high quality bearings
• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.

Rated voltage: 220 – 240V 1Ph 50 Hz
Rated current 3.5A
Capacitor 10uF 450V
Power cable 1.5m long 10 amp rated H05 flex 3 pin plug
Automatic operation Yes – NXT CORE
Pump body 304 Grade Stainless Steel
Wetted parts  Composite impeller / diffusers
Mechanical seal  Silicon Carbide/Carbon
Packed dimensions 370 x 185 x 434mm
Weight 11kg

Applications

Used especially for supplying water to domestic installations and applications where a suction lift is required.

Package Information

• 11 kg
• L 420mm x W 230mm x H 460mm

Manufacturers warranty: 2 years



Additional information

Weight10 kg
Dimensions45 × 25 × 45 cm
Brand

Bianco Pumpz

Jet Pump Operation & Installation manual

Download

INOX45 Core product data sheet

Download
