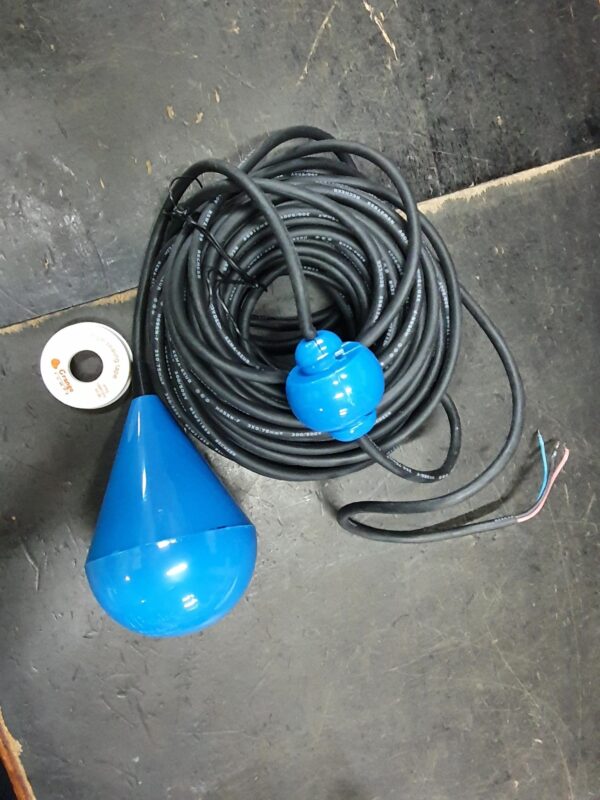

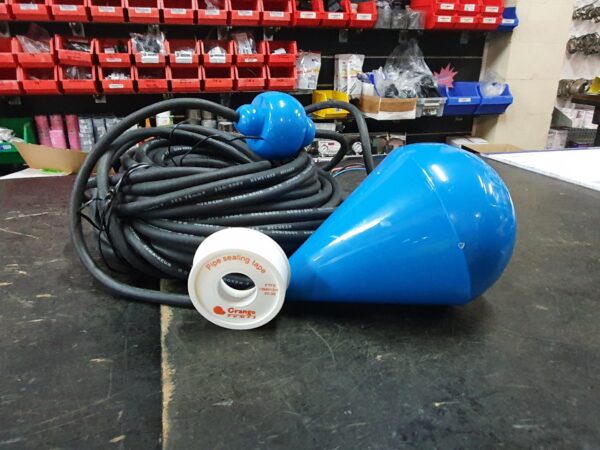

9010 series Blue Tear Drop Level Float Switch With Lead For Water and Sewage Applications
$96.00 – $258.00
Smooth, robust ABS switch housing reduces adhesion of foreign materials
Sliding detent action’ obviates wave induced oscillation, maintaining consistency in switching level accuracy
Liquid Temperature: Min 5˚C (41˚F) Max 60˚C (140˚F)
Liquid Density: Min .65g/cm Max 1.5g/cm
Protection: IP68 @ 20m (65ft)
Contact Type: Microswitch with NO and NC contacts
Max Voltage: 240Vac
Max Current: 6 amps (COS 0)
Chemical Resistance: Acid – Good Alkaline – Good Petro – Good
Manufacturer’s warranty: 12 months
- Description
- Additional information
- Downloads
Description
Product Features
- Smooth, robust ABS switch housing reduces adhesion of foreign materials
- ‘Sliding detent action’ obviates wave induced oscillation, maintaining consistency in switching level accuracy
Specifications
- Liquid Temperature:
- Min 5˚C (41˚F) Max 60˚C (140˚F)
- Liquid Density:
- Min .65g/cm Max 1.5g/cm
- Protection: IP68 @ 20m (65ft)
- Working Pressure: .35MPa
- Switching Speed: 600/min
- Contact Life: 10,000 switches
- Contact Type: Microswitch with NO and NC contacts
- Switching Angle: 20˚(from horizontal)
- Max Voltage: 240Vac
- Max Current: 6 amps (COS 0)
- Cable Material: Neoprene Rubber
- Cable Size: ø7mm / 3 x .75mm²
- Housing Material: ABS – Acrylonine Butadiene Styrene
- Chemical Resistance:
- Acid – Good Alkaline – Good Petro – Good
Manufacturer’s warranty: 12 months
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 32 × 26 × 10 cm |
| Size | 10m Lead, 15m lead, 20m lead, 30m Lead, 40m lead, 5m lead |
