600lpm @ 20 metres UMDNSS3700/80/3 316 Stainless Steel Submersible Pump For Corrosive Brackish Applications – Manual

600lpm @ 20 metres UMDNSS3700/80/3 316 Stainless Steel Submersible Pump For Corrosive Brackish Applications – Manual

$4,510.00

In stock

$4,510.00

Reviews Summary by AI:

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: 600 lpm @ 21 metres
Pump performance: 900 lpm @ 16 metres
Pump performance: 1200 lpm @ 10 metres

Material:  AISI316 cast stainless steel
Pump outlet:   80mm or 100mm flanged outlet
Electrical data:  3.7kW 400/3/50 FLC 7.9 amps IP68 2pole
Motor lead:  10 metres H07RN-F rubber cable
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

SKU: UMDNSS3700/80/3
Clear

Description

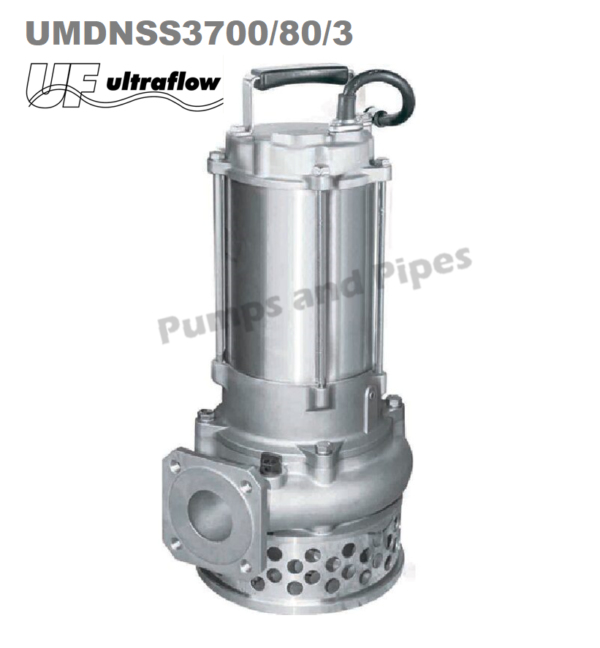

UMDNSS3700/80/3 AISI316 Stainless Steel Drainage Sump Pump

SS pump are suitable for Sit Dewatering, Basement and sump drainage, Horticulture and Aquaculture and water transfer

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Sea water fountain or display, aquaculture water transfer
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: zero flow @ 28 metres  shut off head
Pump performance: 300 lpm @ 24 metres
Pump performance: 600 lpm @ 21 metres
Pump performance: 900 lpm @ 16 metres
Pump performance: 1200 lpm @ 10 metres

Pump outlet:  80mm or 100mm flanged outlet
Solid passage:  10 mm
Electrical data:  3.7kW 400/3/50 FLC 7.9 amps IP68 2pole
Protection: External overload required three phase,
Motor lead:  10 metres 3C + E H07RN-Frubber cable
Starting method:  DOL
Maximum submergence: 10 metres
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

Additional information

Weight55 kg
Dimensions40 × 30 × 50 cm
Brand

Ultraflow

Size

100mm flanged outlet 3.7kW 400/3/50, 80mm flanged outlet 3.7kW 400/3/50

Ultraflow Submersible Sump Pump Range INSTALLATION

Download

UMDNSS7500/80/3 data sheet

Download
