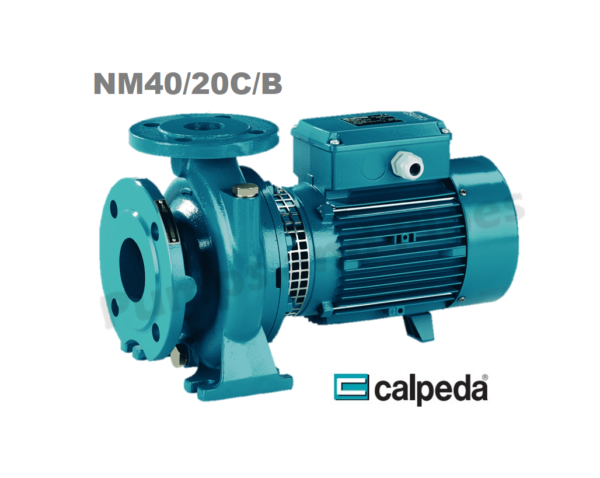

300 lpm @ 370 kPA NM40/20C/B Calpeda 4.0kW 5.5hp Three Phase Pump Unit for Irrigation – Wash down – Made in Italy

300 lpm @ 370 kPA NM40/20C/B Calpeda 4.0kW 5.5hp Three Phase Pump Unit for Irrigation – Wash down – Made in Italy

$1,980.00

In stock

$1,980.00

Reviews Summary by AI:

Calpeda centrifugal motor pump which is used for industrial, water transfer, wash down and irrigation pump
Pump performance:  350 lpm @ 380 kPa
Power supply:   4.0kW 415V three phase 50hz FLC 9.6A

Manufacturer’s warranty:  2 years  Made in Italy

SKU: NM40/20C/B

Description

Calpeda centrifugal motor pump which is used for industrial, water transfer, wash down and irrigation pump

Pump performance:  Shut off head 450 kPa  (64 psi) no flow closed valve
Pump performance:  250 lpm @ 410kPa
Pump Performance: 350 lpm @ 380 kPa
Pump Performance: 450 lpm @ 330 kPa

Material of construction:  CI/BR/SS
Power supply:   4.0kW 415V three phase 50hz FLC 9.6A
Impeller material: bronze impeller diameter 185mm
Suction Flanged connection:  DIN65 PN16 65mm
Discharge Flanged connection:  DIN40 PN16 40mm
Starting method:  DOL VSD or soft starter
Liquid temperature:  -10 deg C to +90 deg C

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight60 kg
Dimensions60 × 40 × 40 cm
Brand

Ebara

NM40/20C/B curve and tech data

Download
