Description

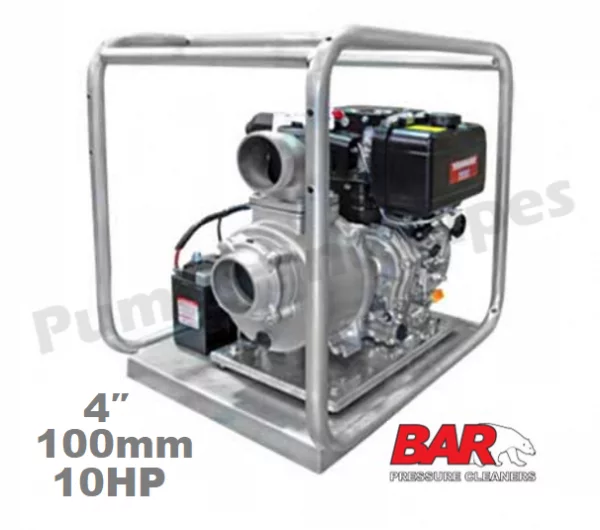

4″ Yanmar Diesel Water Transfer Pump Electric Start

Yanmar Diesel water transfer pumps are the top choice for heavy duty professionals.
When you require consistent & dependable performance for hours on end, this is the go-to unit.  These “Built in Australia” units boast a rugged, heavy duty frame, quality Yanmar diesel engine, and heavy duty aluminum pump body & impeller

Pump Performance:  Shut off head (No Flow)  250 kPa
Flow Rate  500 lpm @ 200 kPa (20m)     Zero suction lift
Flow Rate 1000 lpm @ 120 kPa (12m)    3 meters suction lift
Flow Rate 1000 lpm @ 100 kPa (10m)    5 meters suction lift

Pump:
Pump Connections: 100mm MI BSP both inlet and outlet
Pump Construction:  Aluminum pump body, CI impeller
Standard with NBR Seals & Ceramic Mechanical Seal
Galvanized Steel Roll Frame
Engine:
Yanmar L100 Series 10.0HP Diesel Engine
Air Cooled Direct Injection
Electric Start 12Vdc (price includes battery)
Diesel fuel tank:   5.4 litre capacity
Low Vibration & Noise

Manufacturer’s warranty:  2 years pump & Yanmar 2 Year Limited Warranty
Built in Australia
