150lpm @ 7 metres UMDNSS400/50/1 316 Stainless Steel Drainage Pump For Corrosive Brackish Applications – Manual & Automatic

150lpm @ 7 metres UMDNSS400/50/1 316 Stainless Steel Drainage Pump For Corrosive Brackish Applications – Manual & Automatic

$1,496.00$1,562.00

In stock

$1,496.00$1,562.00

Clear
View cart

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Stainless steel pumps that replace existing cast iron sump pumps

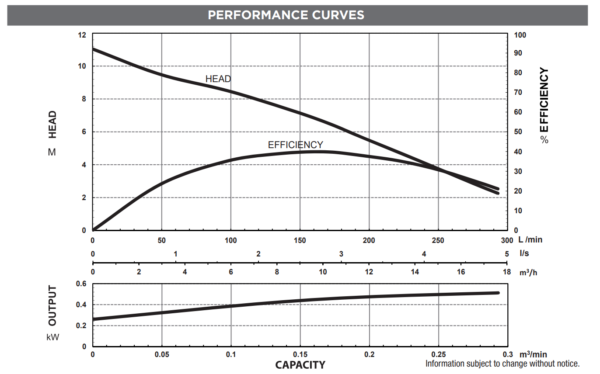

Pump performance: 150 lpm @ 7 metres

Material:  AISI316 cast stainless steel
Pump outlet:   50mm FI BSP adaptor
Electrical data:  0.4kW 240/1/50 FLC 3.2 amps IP68 2 pole
Electrical data:  0.4kW 400/3/50 FLC 1.3 amps IP68 2pole
Motor lead:  10 metres H07RN-F rubber cable
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

SKU: UMDNSS400/50/1

Description

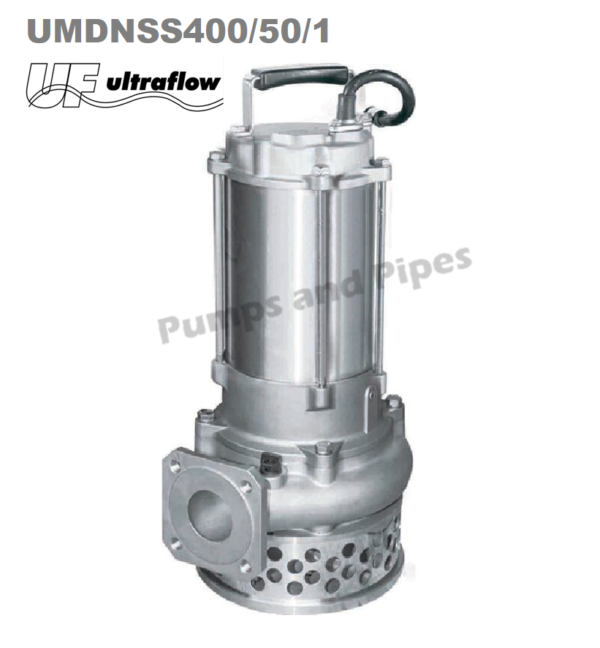

UMDNSS400/50/1 AISI316 Stainless Steel Drainage Sump Pump

SS pump are suitable for Sit Dewatering, Basement and sump drainage, Horticulture and Aquaculture and water transfer

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Boat bilge draining, sea water display, aquaculture water transfer
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: 1.5 lps @ 7 metres

Pump outlet:  50mm FI BSP outlet
Solid passage:  10 mm
Electrical data:  0.4kW 240/1/50 FLC 3.2 amps IP68 2 pole
Electrical data:  0.4kW 400/3/50 FLC 1.3 amps IP68 2pole
Protection: External overload required three phase,
Protection: Internal inbuilt thermal overload to shut down and auto restart in single phase pump
Motor lead:  10 metres 2C + E H07RN-Frubber cable – 3C + E (three phase)
Starting method:  DOL
Maximum submergence: 10 metres
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

Additional information

Weight10 kg

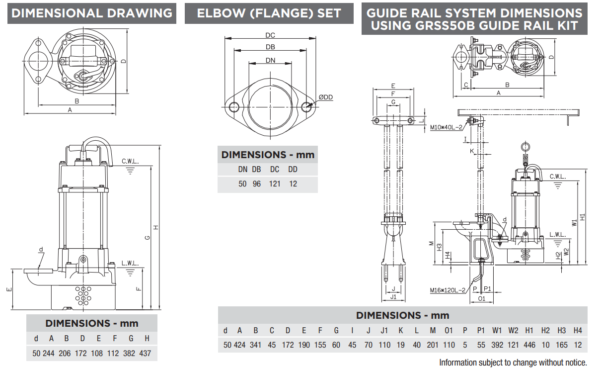

Dimensions20 × 20 × 40 cm
Brand

Ultraflow

Size

Automatic pump single phase 240/1/50 AISI316 stainless steel pump, Automatic pump three phase 400/3/50 AISI316 stainless steel pump, Manual pump single phase 240/1/50 AISI316 stainless steel pump, Manual pump three phase 400/3/50 AISI316 stainless steel pump

Ultraflow Submersible Sump Pump Range INSTALLATION

Download

UMDNSS7500/80/3 data sheet
