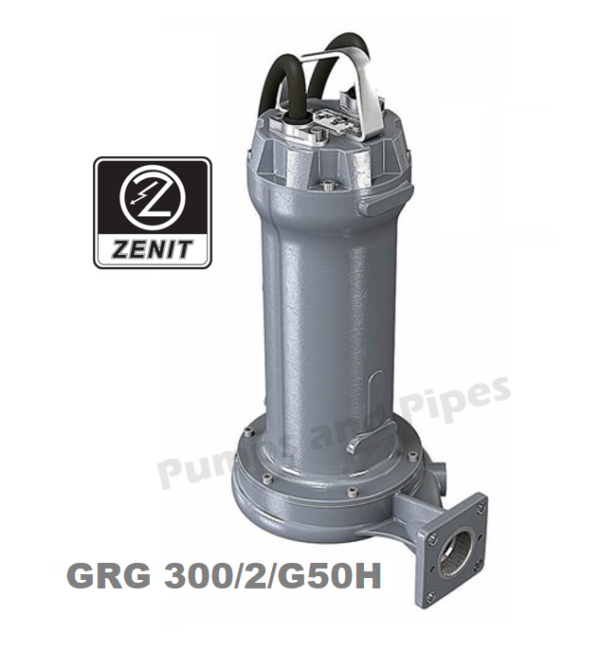

ZENIT Grey Grinder 3phase Submersible Pump ATEX Approved 2.2kW
Zenit GRG 300/2/G50H grinder pump
Pump performance: 3.0 l/s @ 26 metres
Rated power output (P2) – 2.2kW 415/3/50 FLC 7.7A
Pump Connection: 50mm FI BSP outlet
Grinding or macerating liquid design
Manufacturer’s warranty: 2 years Made in Italy
- Description
- Additional information
- Downloads
Description
GRG Grinder Submersible Pump for Sewage Pumping Stations – 415 volt three phase
ATEX Certification for use in underground car parks, fuel stations and all sewage applications
Pump performance: Shut off head 30 metres
Pump performance: 1.5 lps @ 28 metres
Pump performance: 2.0 lps @ 27 metres
Pump performance: 3.0 lps @ 26 metres
Pump performance: 5.0 lps @ 22 metres
Motor specifications: 2.2kW 415/3/50 three phase IP68 FLC 7.7 amps
Motor lead: 10metre in length 3C + E + thermistor cables
Starting current: 54.1 amps
Cutting action gives 69,000 cuts per minute
Pump discharge outlet: 50mm FI BSP discharge
Auto-coupling available with 2 x 20mm guide rails
Applications
- Sewage Pumping Stations
- Trade Waste pumping systems
- Sewage & Treatment Work
Contact us for control panel design and supply 07 3208 9499
Control panels for DOL, Soft starters or VSD with floats switches or transducers
Manufacturer’s warranty: 2 years Made in Italy
Additional information
| Weight | 65 kg |
|---|---|
| Dimensions | 50 × 80 × 50 cm |
| Brand | Zenit |
