WEDA D50H or D50N Three Phase 5.6kW 50hz Electric Submersible Pump – Dewatering And Flooded Mine Pump

WEDA D50H or D50N Three Phase 5.6kW 50hz Electric Submersible Pump – Dewatering And Flooded Mine Pump

$6,120.00

In stock

$6,120.00

Reviews Summary by AI:

WEDA D50+ 5.6kW Portable electric submersible pump for dewatering of construction sites, mines, flooded areas etc
Three Phase: Squirrel cage induction motor with built-in contactor
D50N Pump Performance: 15 lps @ 17 metres
D50H Pump performance: 10 lps @ 32 metres
Motor: 5.6kW 400/3/50 FLC 11.1 amps
Squirrel cage induction motor with built-in contactor
Motor lead: 20 metres 2.5mm2 4C
Outlet: N 100mm M BSP – H 80mm M BSP
Manufacturer’s warranty: 12 months

SKU: WEDA 50
Clear

Description

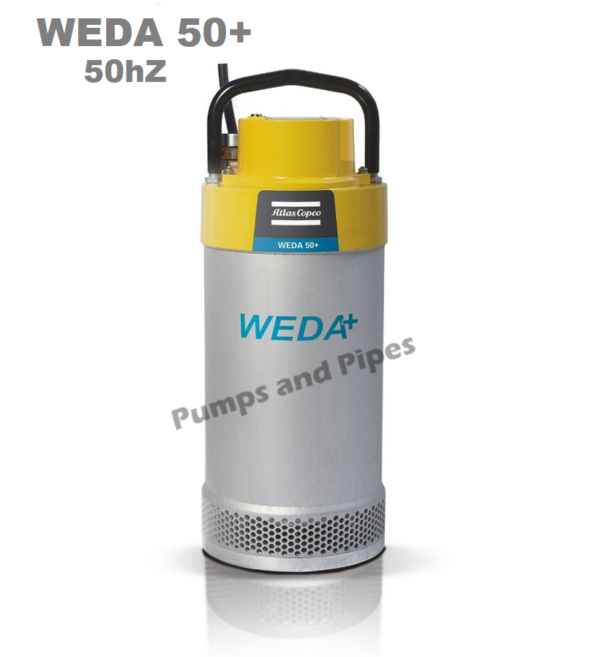

WEDA D50+ 5.6kW Portable electric submersible pump for dewatering of construction sites, mines, flooded areas etc
Designed for handling liquid with abrasive particles and clean or sand-laden water with the best performance and efficiency

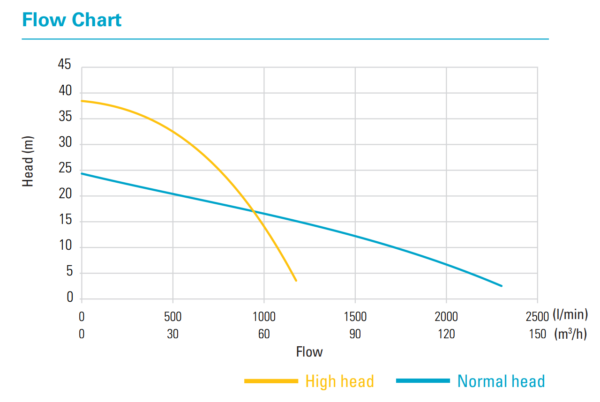

D50N series Pump performance:
Pump Performance: 10 lps @ 20 metres
Pump Performance: 15 lps @ 17 metres
Pump Performance: 20 lps @ 15 metres
Pump Performance: 30 lps @ 7 metres
D50H series Pump performance:
Pump Performance: 10 lps @ 32 metres
Pump Performance: 15 lps @ 17 metres
Outlet: N 100mm M BSP – H 80mm M BSP

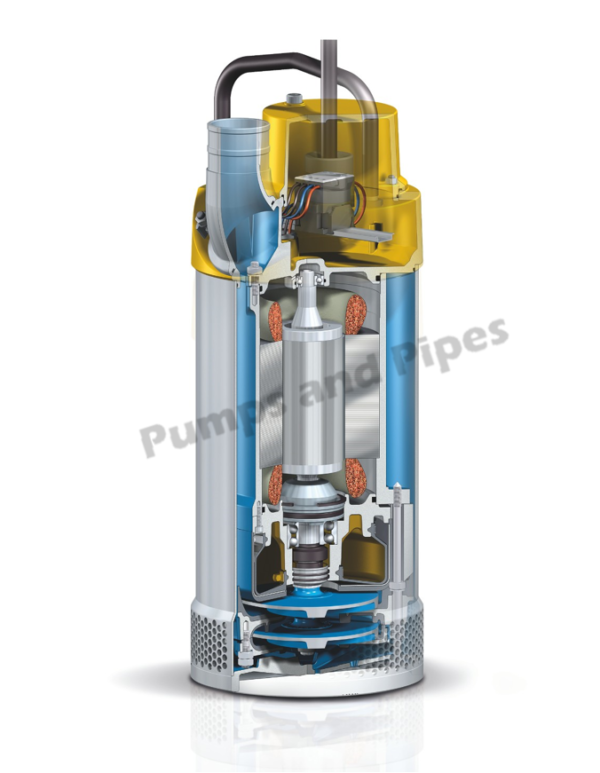

Motor details:
Motor: 5.6kW 400/3/50 FLC 11.1 amps
Squirrel cage induction motor with built-in contactor
Motor lead: 20 metres 2.5mm2 4C
Insulation: Class F (+155C), IEC 85
Three Phase: Squirrel cage induction motor with built-in contactor
Designed for:
Heavy duty pumping of abrasive liquids.
Max submersible depth of 20m.
Max temperature of liquid +40C.
Max density of liquid, 1.100kg/m3.
pH of the liquid between 5-8.
Materials:
Castings: Aluminium
Outer-casing: Aluminium
Shaft: Stainless steel
Fasteners: Stainless steel
Impeller: Cr-alloyed white cast iron, 55Rc
Wear parts: Nitrile rubber

Manufacturer’s warranty: 12 months

Additional information

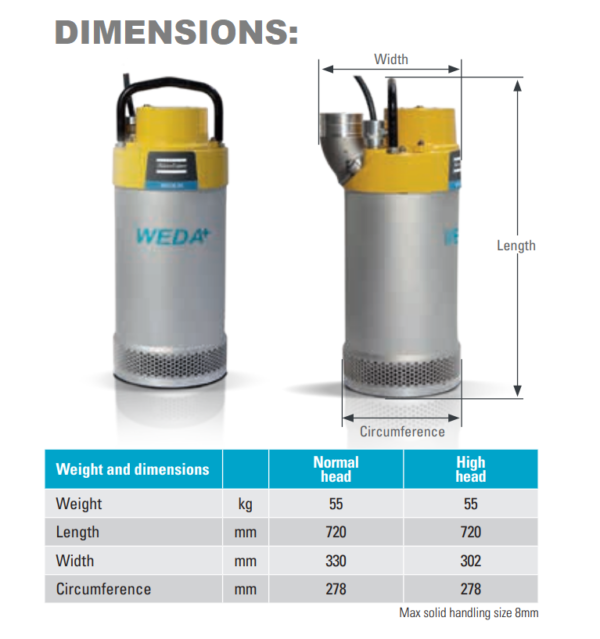

Weight55 kg
Dimensions75 × 35 × 30 cm
Size

WEDA 50+ 50hZ High Head, WEDA 50+ 50hZ Normal Head

WEDA 50+ DATA SHEET

Download
