Description

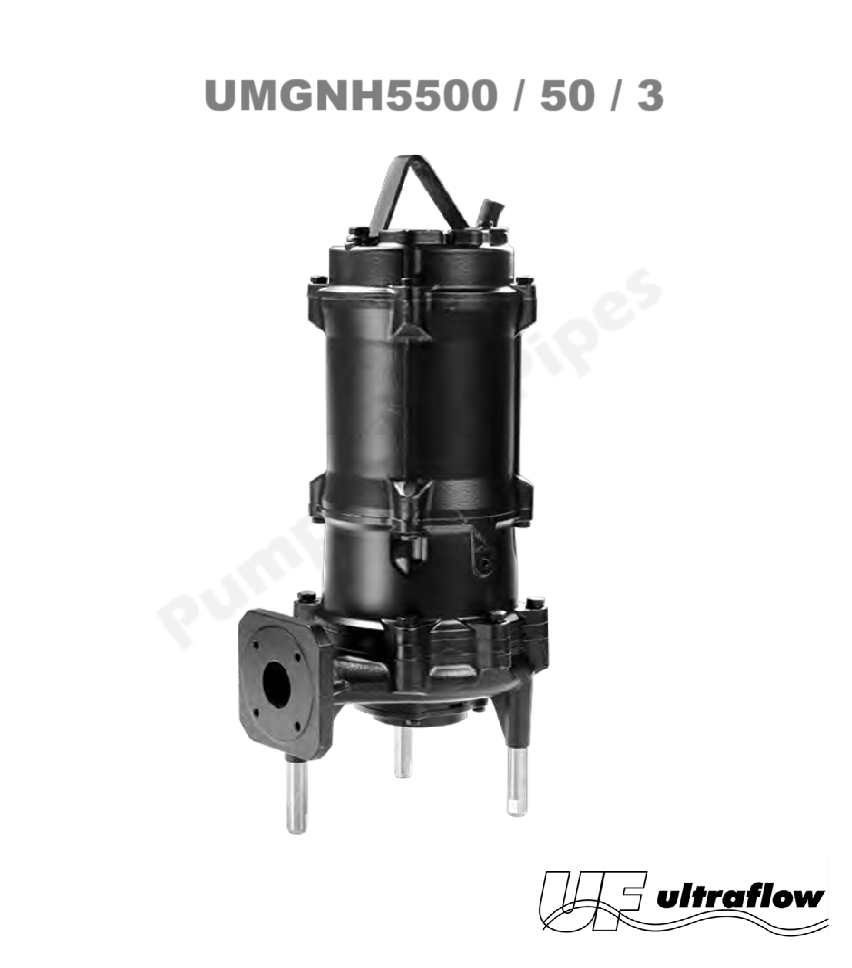

Ultraflow Sewage Grinder range of submersible pumps suitable for;

• Raw sewage transfer
• Trade waste disposal
• Grey water and septic transfers
• Pumping liquids with soft solids
• For applications with high static heads &/or long distances

Pump performance :  Shut off head @ 53 metres
Pump performance :  3 lps @ 49 metres
Pump performance :  4 lps @ 48 metres
Pump performance :  5 lps @ 44 metres

Pump Impeller: Semi Open impeller
Pump Connection: 50mm FI BSP flanged elbow supplied
Grinder: Heat treated 440 Stainless steel
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   7.5kW 415/3/50 IP68 2 pole FLC 15.2 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  2.5mm 3C + E 10 metres in length
Weight:  52kg

Features

• CE& ISO 9001 certified
• All metal construction
• Dual mechanical seal + lip seal in oil bath
• Silicon carbide faces to lower seal
• Double bearing at lower end of electrical motor
• Can be installed with a guide rail system

Manufacturer’s warranty:  2 years  Made in Taiwan
