Description

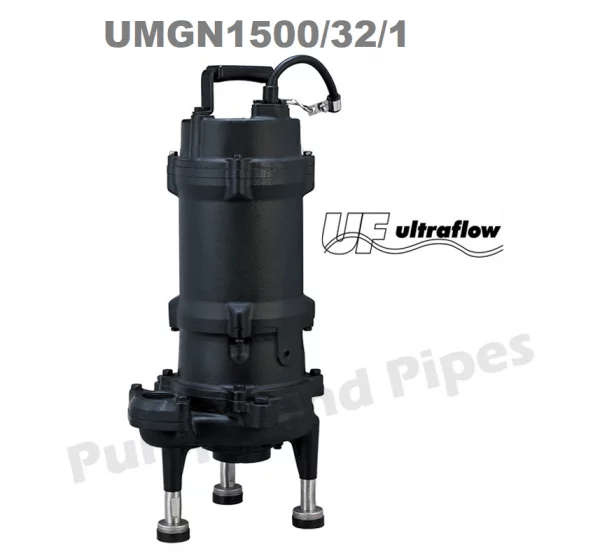

UMGN1500/32/1 Sewage Grinder submersible pumps are suitable for;

• Raw sewage transfer
• Trade waste disposal
• Grey water and septic transfers
• Pumping liquids with soft solids

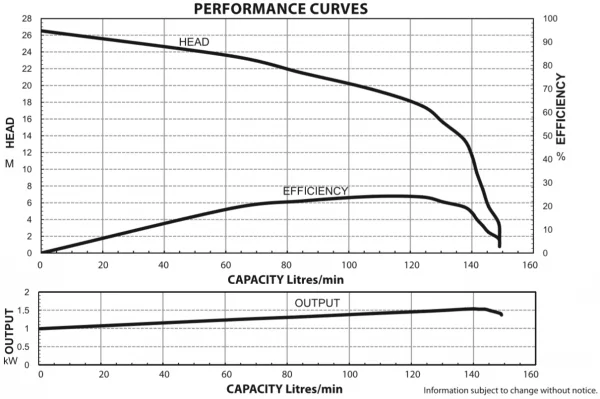

Pump Performance:  Shut off head (zero flow) @ 26 meters
Pump Performance:  1.0 lps @ 23 meters
Pump Performance:  1.5 lps @ 21 meters
Pump Performance:  2.0 lps @ 18 meters

Pump Impeller: Semi Open impeller
Pump Connection: 32mm FI BSP flanged elbow supplied
Grinder: Heat treated 440 Stainless steel blades
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   1.5kW 240/1/50 IP68 2 pole FLC 3.4 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  1.5mm 3C + E 10 meters in length
Weight:  36kg

Features

• CE& ISO 9001 certified
• All metal construction
• Dual mechanical seal + lip seal in oil bath
• Silicon carbide faces to lower seal
• Double bearing at lower end of electrical motor
• Can be installed with a guide rail system

Manufacturer’s warranty:  2 years  Made in Taiwan
