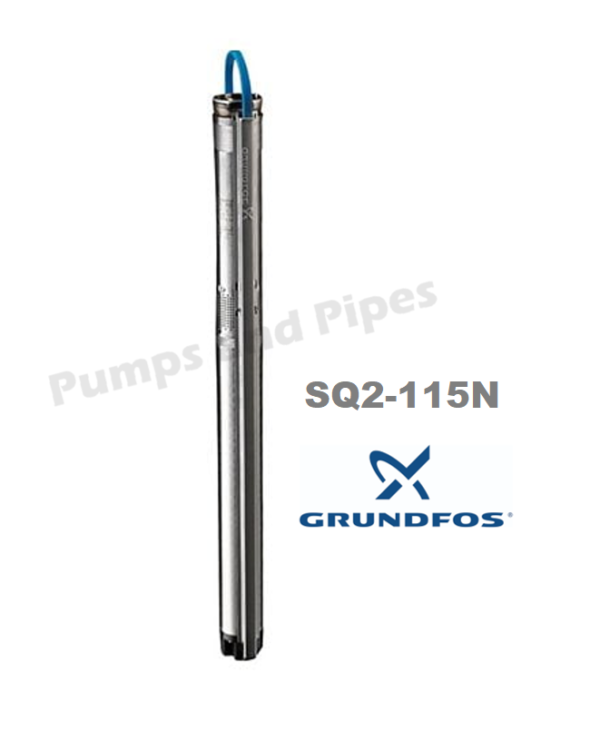

SQ2-115N Grundfos 3inch Submersible Bore Pump Unit

SQ2-115N Grundfos 3inch Submersible Bore Pump Unit

$2,980.00

In stock

$2,980.00

Reviews Summary by AI:

SQ2-115N is suitable for domestic water supply, tank filling and irrigation
SQ2-115N offers the following features dry running protection and soft starting
Flow rate:  25 lpm @  142 metres   (330 gph)
Power supply:   230Volt AC single phase
Motor details:  1.85 kW single phase FLC 10.7 A
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years

SKU: 96160417

Description

SQ2-115N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ2-115N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  13 lpm @  150 metres    (175 gph)
Flow rate:  25 lpm @  142 metres   (330 gph)
Flow rate:  40 lpm @  110 metres   (520 gph)

Power supply:   230Volt AC single phase
Motor details:  1.85 kW 50HZ 10,700rpm, IP68 rated FLC 10.7 A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico

Additional information

Weight8 kg
Dimensions80 × 10 × 10 cm
Brand

GRUNDFOS

SQ-N Brochure

Download

SQ2N curve and tech data

Download
