Description

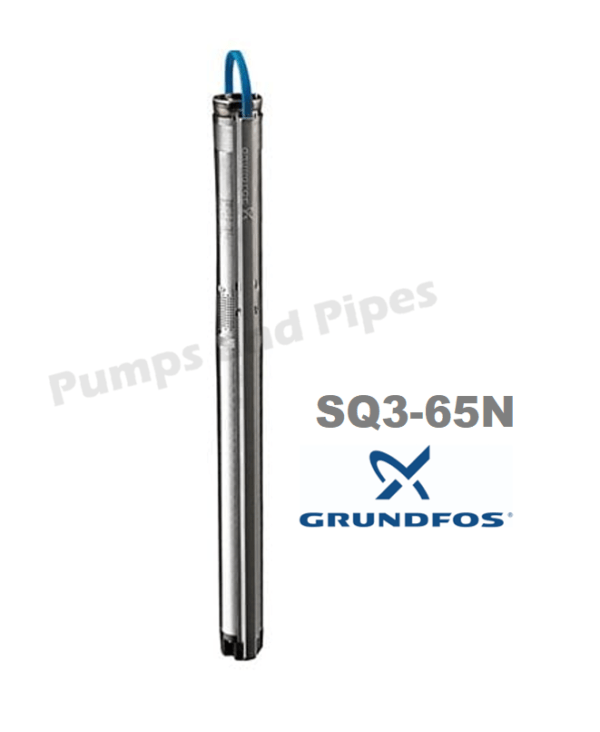

SQ3-65N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ3-65N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  25 lpm @ 86 meters    (330 gph)
Flow rate:  38 lpm @ 78 meters   (500 gph)
Flow rate:  60 lpm @ 56 meters   (790 gph)

Power supply:   230Volt AC single phase
Motor details:  1.15 kW 50HZ 10,700rpm, IP68 rated FLC 6.7A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico
