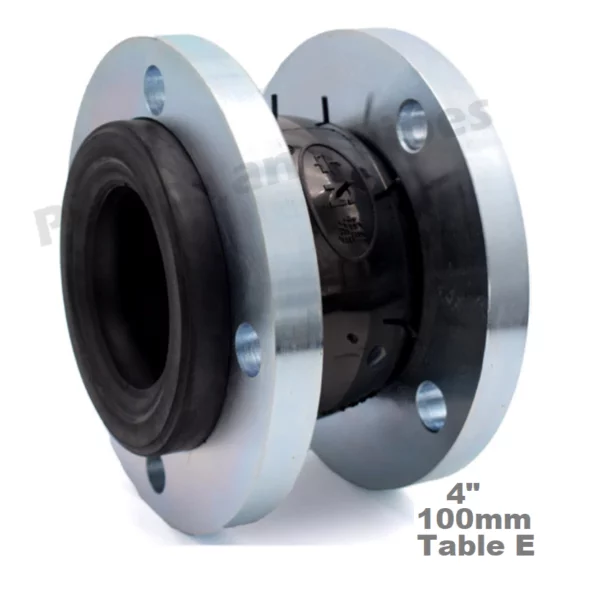

Rubber Bellows 4″ 100mm Table D 4 Holes And Table E 8 Holes Flanged Expansion Vibration Joints REJE-100-DDHG – REJE-100-EEHG – REJE-100-DD6S – REJE-100-EE6S

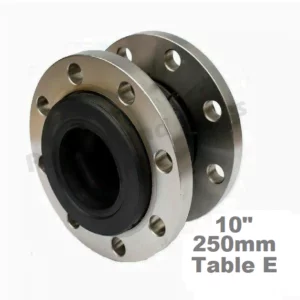

Rubber Bellows 10″ 250mm Table E Flanged Expansion Vibration Joints

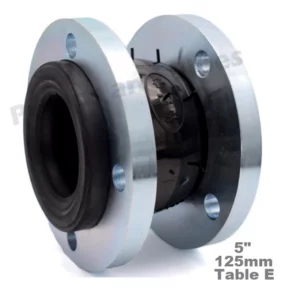

Rubber Bellows 5″ 125mm Table E Flanged Expansion Vibration Joints

Rubber Bellows 4″ 100mm Table D 4 Holes And Table E 8 Holes Flanged Expansion Vibration Joints REJE-100-DDHG – REJE-100-EEHG – REJE-100-DD6S – REJE-100-EE6S

$184.80 – $195.00

In stock

$184.80 – $195.00

Reviews Summary by AI:

Flexible Expansion Joint of single sphere neoprene rubber
Float or loose flanges, zinc plated mild steel to BS D and E drilling
Float or loose flanges, 316 stainless steel to BS D and E drilling
REJE-100-DDHG … Table D 4 hole galvanised flanged – Holes suit M16 bolt
REJE-100-EEHG … Table E 8 hole galvanised flanged – Holes suit M16 bolt
REJE-100-DD6S … Table D 4 hole 316 SS flanged – Holes suit M16 bolt
REJE-100-EE6S … Table E 8 hole 316 SS flanged – Holes suit M16 bolt
Maximum Temperature:  80 degC
Manufacturer’s warranty:  12 months

SKU: N/A
Clear

Description

Flexible Expansion Joint of single sphere neoprene rubber
Float or loose flanges, zinc plated mild steel to BS D and E drilling
Float or loose flanges, 316 stainless steel to BS D and E drilling

REJE-100-DDHG … Table D 4 hole galvanised flanged – Hole Diameter suit M16 bolt
REJE-100-EEHG … Table E 8 hole galvanised flanged – Hole diameter suit M16 bolt
REJE-100-DD6S … Table D 4 hole 316 SS flanged – Hole Diameter suit M16 bolt
REJE-100-EE6S … Table E 8 hole 316 SS flanged – Hole diameter suit M16 bolt
Maximum Temperature:  80 degC
Natural Length:  135 mm
Angular Deflection:  15 degrees

Manufacturer’s warranty:  12 months

Additional information

WeightN/A
DimensionsN/A
Size

100 D Galv flanged EPDM Rubber bellows – 4 holes, 100 E Galv flanged EPDM Rubber bellows – 8 holes
