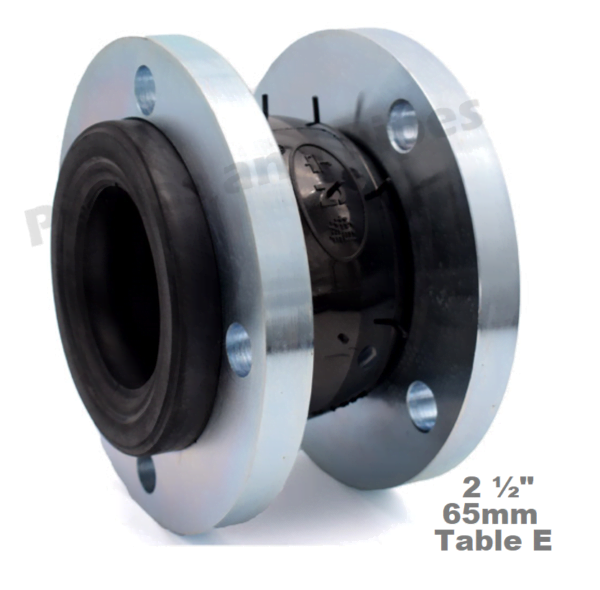

Rubber Bellows 2 ½” 65mm Table E Flanged Expansion Vibration Joints

Rubber Bellows 2 ½” 65mm Table E Flanged Expansion Vibration Joints

$86.00

In stock

$86.00

Reviews Summary by AI:

Flexible Expansion Joint of single sphere neoprene rubber. Float or loose flanges, zinc plated mild steel to BS E drilling

Round Flanges 4 hole Table E Hole Diameter suit M16 bolt
Maximum Temperature:  80 degC
Maximum Pressure Rating:  16 bar PN16
Manufacturer’s warranty:  12 months

SKU: RBE065

Description

Flexible Expansion Joint of single sphere neoprene rubber. Float or loose flanges, zinc plated mild steel to BS E drilling

Round Flanges 4 hole Table E Hole Diameter suit M16 bolt
Maximum Temperature:  80 degC
Maximum Pressure Rating:  16 bar PN16
Natural Length:  115 mm
Angular Deflection:  15 degrees

Manufacturer’s warranty:  12 months

Additional information

Weight5 kg
Dimensions15 × 10 × 15 cm
