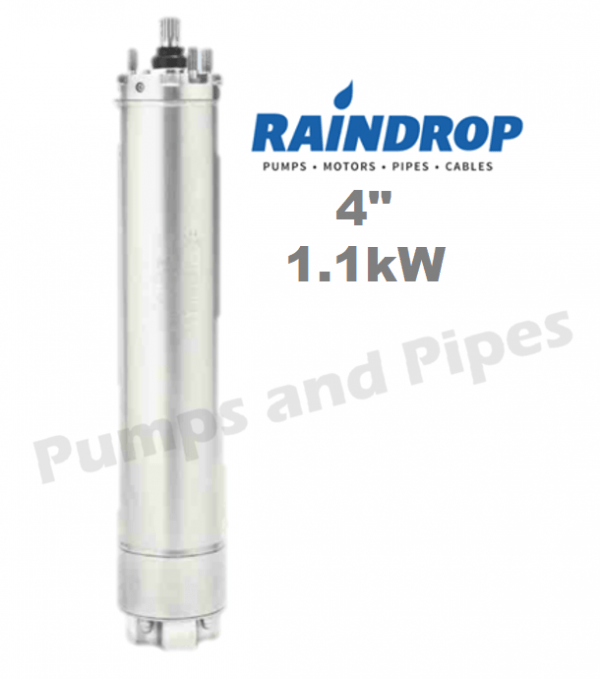

4 inch 1.1kW 1.5hp Three Phase Submersible Bore Motor Raindrop – Suits Grundfos LOWARA Franklin Pump Ends

4 inch 1.1kW 1.5hp Three Phase Submersible Bore Motor Raindrop – Suits Grundfos LOWARA Franklin Pump Ends

$335.00

In stock

$335.00

View cart

1.1kw 1.5hp three phase 415volt 50hz submersible motor
NEMA standard
Stainless Steel AISI304 grade
Will fit all major brands of submersible pump ends

Manufacturer’s warranty:  2 years

SKU: 4RAIN1.1

Description

4″ 1.1kW 1.5hp Water Lubricated Submersible Motor

4″ Raindrop Water Lubricated Motors are rewindable
Coupling dimensions as per NEMA standard
Degree of protection : IP68
Max water temperature : 35° C
Start per hour : 30 time (Max.)
Allowable voltage variation +6% – 10%
Motor shaft of Stainless Steel
Stator shell of Stainless Steel
Max depth immersion : 250 metres
Mounting : vertical / horizontal
Upper Bracket Steel Cast/ Lower bracket with SS Cladding
Motor Cable length : 3 metres (4C)
Coolant : Clear Water

Motors with other Voltage and frequency ratings are also available on specific demand.

Additional information

Weight20 kg
Brand

Raindrop

SS Raindrop Sub Motor 4inch Data Sheet

Download
