PME Metric Poly X Metric Poly 90deg Elbow – Blue Line Fitting Sizes 16 20 25 32 40 50 63 75 90 110

PME Metric Poly X Metric Poly 90deg Elbow – Blue Line Fitting Sizes 16 20 25 32 40 50 63 75 90 110

$3.10$112.70

In stock

$3.10$112.70

Reviews Summary by AI:


Fittings are suitable for joining Metric Blueline polyethylene pipes.

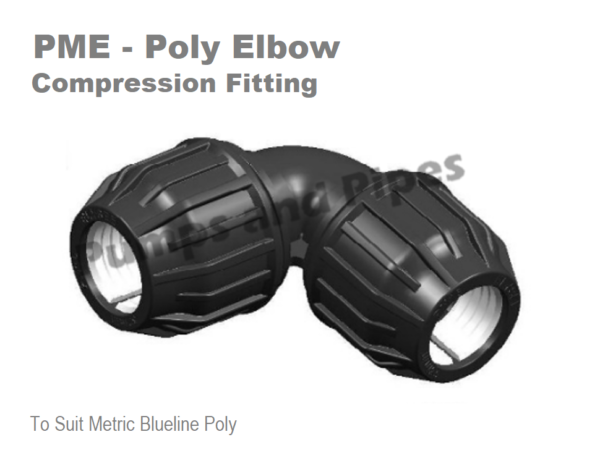

PME – Poly Metric 90Deg Elbow
Operating Pressure
Fitting Pipe Diameter 16mm up to 63mm: 1600kpa (16 bar)
Fitting Pipe Diameter 75mm up to 110mm: 1250kpa (12.5 bar)
Australian Standard Conformity: AS4020 Drinking water approved.
All internal female threads smaller then 80mm are parallel
All male threads and other female threads are tapered
Recommended that PTFE Tape is used when making threaded connections
Assembly should be carried out by hand and final tightening by Cap Wrench (PMWRENCH)

Manufacturer’s Warranty: 2 Years

SKU: N/A
Clear

Description

Fittings are suitable for joining Metric Blueline polyethylene pipes – PE-HD.
Fittings comply with the dimensional requirements and characteristics of the following relevant standards:
– ISO 3458 / 3459 / 3501 / 3503 ISO 14236
Operating Pressure
Fitting Pipe Diameter 16mm up to 63mm: 1600kpa (16 bar)
Fitting Pipe Diameter 75mm up to 110mm: 1250kpa (12.5 bar)
Refer Pumps & Pipes for Derating with liquid temperature above 20-degree C.
Australian Standard Conformity: AS4020 Drinking water approved.
Fittings offer excellence weather properties that protect against degradation UV Radiation (installed in exposed systems)
Threading
Threads (BSP) are manufactured according to ISO 7, DIN2999 and BS 21
All internal female threads smaller then 80mm are parallel
All male threads and other female threads are tapered
Recommended that PTFE Tape is used when making threaded connections
Assembly should be carried out by hand and final tightening by Cap Wrench (PMWRENCH)
Extra care must be taken not to over tighten and otherwise damage the thread

Additional information

WeightN/A
DimensionsN/A
Size

PME110 110mm Metric Poly Elbow, PME16 16mm Metric Poly Elbow, PME20 20mm Metric Poly Elbow, PME25 25mm Metric Poly Elbow, PME32 32mm Metric Poly Elbow, PME40 40mm Metric Poly Elbow, PME50 50mm Metric Poly Elbow, PME63 63mm Metric Poly Elbow, PME90 90mm Metric Poly Elbow

Holman Poly Compression Fitting Catalogue

Download

PME Data Sheet

Download
