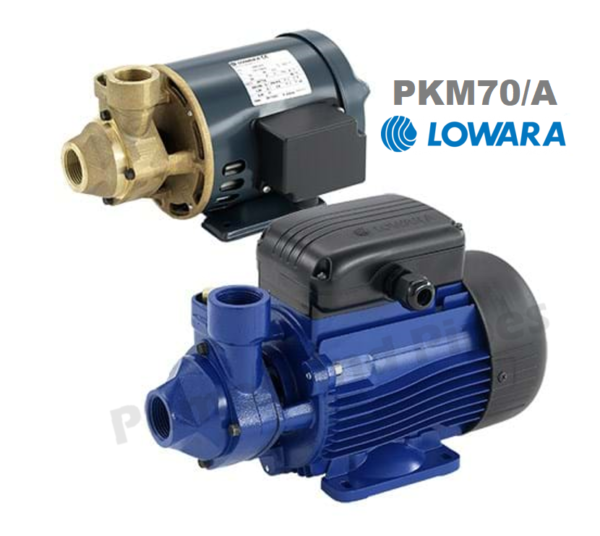

PKM70/A Peripheral Turbine Single and PK70/A Three Phase Jacking Pump

PKM70/A Peripheral Turbine Single and PK70/A Three Phase Jacking Pump

$910.00$920.00

In stock

$910.00$920.00

Peripheral pumps capable of developing high heads using low powered motors.
Pump performance:  10lpm @ 760 kPA
Pump performance:  20lpm @ 500 kPA
Pump performance:  30lpm @ 270 kPA

Motor 0.75kW single phase FLC 5.9A  50/60Hz
Motor 0.75kW three phase FLC 2.2A  50/ 60 Hz
Maximum operating pressure: 10 bar
Temperature of pumped liquid: -10°C to +80°C

Manufacturer’s warranty: 2 year  Made in Italy

SKU: PKM40/A-1
Clear
View cart

Description

Water distribution, Washing, Boiler, Hot water systems, Pressure boosting and water transfer
Peripheral pumps capable of developing high heads using low powered motors.
PK versions can pump hot water up to 80°C

Pump performance:  shut off head @ 1050 kPA
Pump performance:  10lpm @ 760 kPA
Pump performance:  20lpm @ 500 kPA
Pump performance:  30lpm @ 270 kPA

Specifications
Power supply:
0.75kW single phase FLC 5.9A  50/60Hz
0.75kW three phase FLC 2.2A  50/ 60 Hz
Maximum operating pressure: 8 bar
Temperature of pumped liquid: -10°C to +80°C
Maximum ambient temperature: 40°C
Insulation class: F
Protection: IP55
Materials
Pump body: Cast iron
Adapter: Cast iron
Impeller: Bronze
Mechanical seal: Ceramic/Carbon/NBR
Fill plugs: Brass
Elastomers: NBR
Pump connections: Inlet and Outlet 20mm FI BSP

Manufacturer’s warranty: 2 year  Made in Italy

Additional information

Weight6 kg
Dimensions30 × 20 × 20 cm
Size

Single phase, Three phase

P Series Technical data
