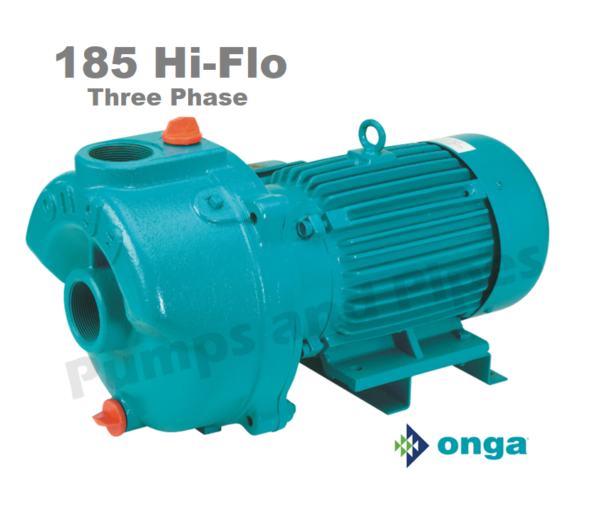

ONGA 185 Hi-Flo Three Phase Cast Iron End Suction Pump

ONGA 185 Hi-Flo Three Phase Cast Iron End Suction Pump

$2,860.00

In stock

$2,860.00

Onga Model 185 is constructed of cast iron
Model 185 is ideally suited to water transfer or cooling towers
Flow rate:  600 lpm @ 360 kPA
Power supply:  415Volt AC three phase
Motor details:  6.0 kW 50hz IP54 rated TEFC FLC 12.8 amps
Pump connections:  50mm FI BSP suction and discharge

Manufacturer’s warranty:  1 year

SKU: 318530
View cart

Description

Onga Model 185 is constructed of cast iron
Model 185 is ideally suited to water transfer and cooling towers
Casings are cast iron making them suitable for the harshest of conditions

Flow rate:  Shut off head 520 kPA
Flow rate:  200 lpm @ 490 kPA
Flow rate:  400 lpm @ 430 kPA
Flow rate:  600 lpm @ 360 kPA
Flow rate:  800 lpm @ 230 kPA

Power supply:  415Volt AC three phase
Motor details:  6.0 kW 50hz IP54 rated TEFC FLC 12.8 amps
Pump connections:  50mm FI BSP suction and discharge

Manufacturer’s warranty:  1 year

Additional information

Weight92 kg
Dimensions74 × 50 × 50 cm
Brand

Onga

18 series Technical data
