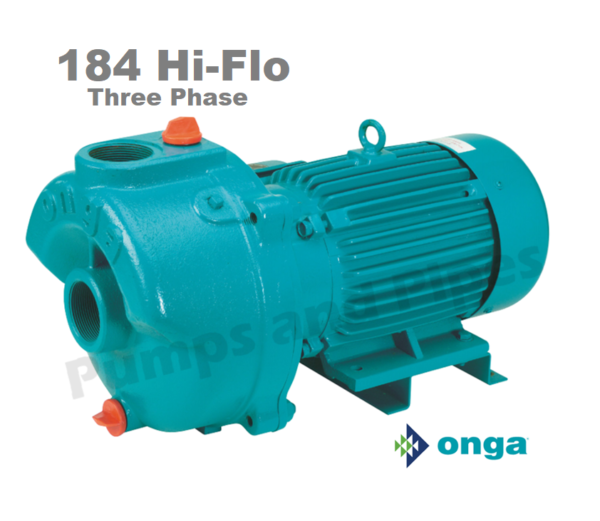

ONGA 184 Hi-Flo Three Phase Cast Iron End Suction Pump

ONGA 184 Hi-Flo Three Phase Cast Iron End Suction Pump

$2,669.00

In stock

$2,669.00

View cart

Onga Model 184 is constructed of cast iron
Model 184 is ideally suited to water transfer or cooling towers
Flow rate:  400 lpm @ 280 kPA
Power supply:  415Volt AC three phase
Motor details:  3.8 kW 50hz IP54 rated TEFC FLC 7.5 amps
Pump connections:  50mm FI BSP suction and discharge

Manufacturer’s warranty:  1 year

SKU: 318430

Description

Onga Model 184 is constructed of cast iron
Model 184 is ideally suited to water transfer and cooling towers
Casings are cast iron making them suitable for the harshest of conditions

Flow rate:  Shut off head 470 kPA
Flow rate:  200 lpm @ 400 kPA
Flow rate:  400 lpm @ 280 kPA
Flow rate:  600 lpm @ 130 kPA

Power supply:  415Volt AC three phase
Motor details:  3.8 kW 50hz IP54 rated TEFC FLC 7.5 amps
Pump connections:  50mm FI BSP suction and discharge

Manufacturer’s warranty:  1 year

Additional information

Weight68 kg
Dimensions74 × 50 × 50 cm
Brand

Onga

18 series Technical data

Download
