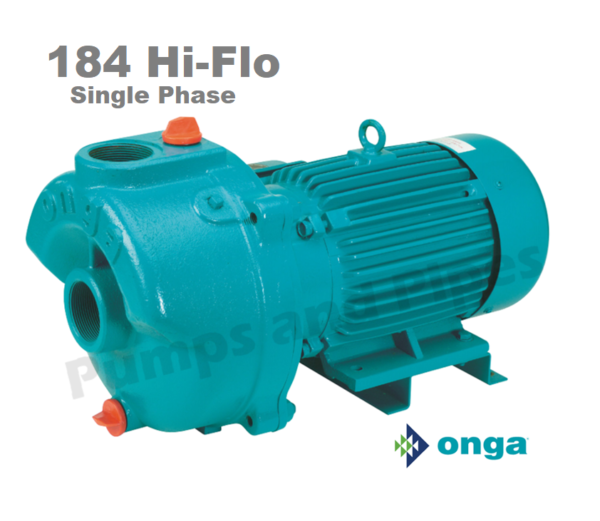

ONGA 184 Hi-Flo 230 / 460 Volt Single Phase Cast Iron End Suction Pump – Part Number 318400
Onga Model 184 is constructed of cast iron
Model 184 is ideally suited to water transfer or cooling towers
Flow rate: 400 lpm @ 280 kPA
Power supply: 240/480Volt AC single phase
Motor details: 3.8 kW 50hz IP54 rated TEFC FLC 20.6/10.3 amps
Pump connections: 50mm FBSP suction and discharge
Manufacturer’s warranty: 1 year
Pentair policy is 6months from invoice if working in a business or industrial application (not domestic)
- Description
- Additional information
- Downloads
Description
Onga Model 184 is constructed of cast iron
Model 184 is ideally suited to water transfer and cooling towers
Casings are cast iron making them suitable for the harshest of conditions

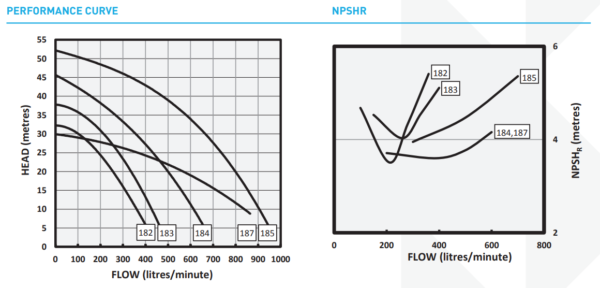

Flow rate: Shut off head 470 kPA
Flow rate: 200 lpm @ 400 kPA
Flow rate: 400 lpm @ 280 kPA
Flow rate: 600 lpm @ 130 kPA
Power supply: 240/480 Volt AC single phase
Motor details: 3.8 kW 50hz IP54 rated TEFC FLC 20.6/10.3 amps
Pump connections: 50mm FBSP suction and discharge
Manufacturer’s warranty: 1 year
Pentair policy is 6months from invoice if working in a business or industrial application (not domestic)
Additional information
Weight | 68 kg |
---|---|

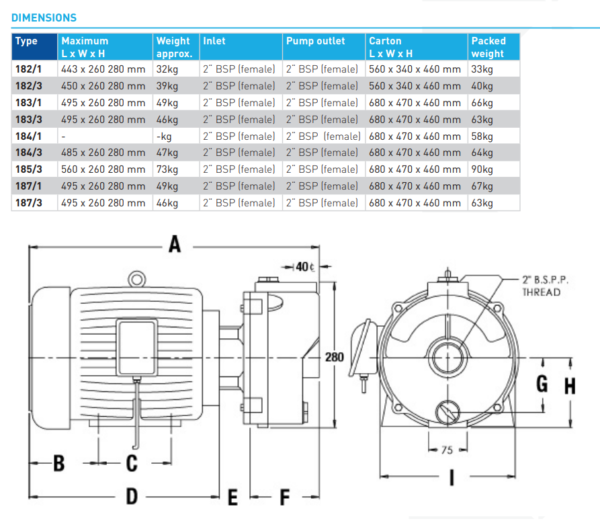

Dimensions | 74 × 50 × 50 cm |
Brand | Onga |
