Description

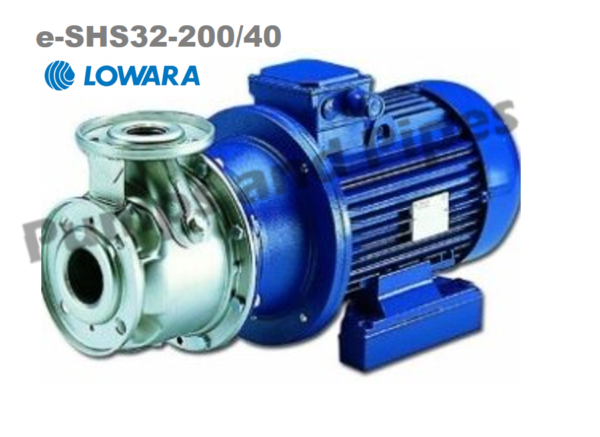

AISI 316 Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

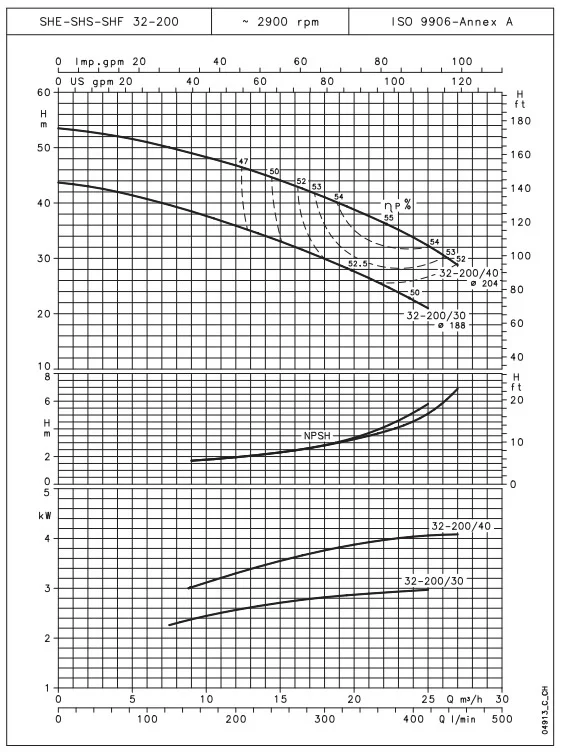

Pump performance:  Shut off head 510 kPa  (68 psi) no flow maximum pressure
200 lpm @ 460 kPa
300 lpm @ 400 kPa
400 lpm @ 320 kPa  end of curve NPSH(r) 6 meters

Material of construction:  SS/SS/SS
Power supply:   4.0kW 415V three phase 50hz FLC 7.6A 2900 rpm
Impeller material: AISI316 stainless steel
Casing material: AISI316 stainless steel
Suction connection:  DIN50 Flanged
Discharge connection:  DIN32 Flanged
Starting method:  DOL , VSD or soft starter
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy
