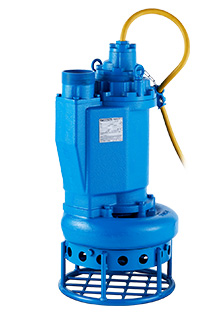

KRDX47.5 Duty 20lps @ 11m Tsurumi 7.5kW Explosion Proof Slurry Mine Dewatering

KRDX47.5 Duty 20lps @ 11m Tsurumi 7.5kW Explosion Proof Slurry Mine Dewatering

$20,800.00

In stock

$20,800.00

View cart

KRDX47.5 pumps are submersible slurry pumps equipped with agitators recognized by both the International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres (IECEx) and Directive 2014/34/EU Equipment and Protective Systems intended for use in potentially Explosive Atmospheres (ATEX).

Pump performance:   20 lps @ 11 metres
Pump performance:   30 lps @  6 metres

Electric submersible pump
Solids Handling: Max. solid handling 33 mm
Liquid:  Suitable for sludge, slurry, liquids containing sandy mud and bentonite
Voltage: 380V – 415V, 50Hz, three phase
Power: 7.5 kW Full Load Current:  16,0 amps
Discharge Connection: 100mm MI BSP

Manufacturer’s warranty:  12 months  Made in Japan

SKU: KRDX47.5

Description

KRDX-series pumps are submersible slurry pumps equipped with agitators recognized by both the International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres (IECEx) and Directive 2014/34/EU Equipment and Protective Systems intended for use in potentially Explosive Atmospheres (ATEX).
With the impeller, suction plate, and agitator made of high-chromium cast iron and the pump casing and motor frame made of ductile cast iron, KRDX-series pumps are excellent in terms of wear resistance, and thus suited for drainage of mud-water, sediment-containing water, and various kinds of liquid slurry.
In addition, KRDX-series pumps can be built to specifications of rated voltages of 380 V to 1,000 V.

Pump performance:  zero flow @ 17 metres  Shut off head
Pump performance:   15 lps @  13 metres
Pump performance:   20 lps @ 11 metres
Pump performance:   30 lps @  6 metres
Electric submersible pump
Protection class IP68 , International IECEx TUR 19.0038X, Europe TÜV 19 ATEX 8398 X
Depth of submersion max. 30m
Impeller Type: Open type impeller with Agitator
Solids Handling: Max. solid handling 33 mm
Liquid:  Suitable for sludge, slurry, liquids containing sandy mud and bentonite
Electric Motor: Dry-type submersible induction motor, Insulation class H 4 poles, 1440 rpm
DOL: Direct on line start
Voltage: 380V – 415V, 50Hz, three phase
P2 Power output: 7,5kW
Full Load Current:  16,0 Amps
Start current: 93,0 Amps
Electric Cable: NSSHÖU screened x 20m
Motor Protection: Circle thermal protector (snap-action bi-metal device)
Shaft Seal: Double mechanical seal in oil bath additional lubrication by oil lifting device
Primary Seal: silicon carbide on silicon carbide
Secondary Seal: silicon carbide on silicon carbide
Bearings: Shielded ball bearings, maintenance-free
Materials
Impeller: Chromium iron casting
Agitator: Chromium iron casting
Casing: FC200 (EN-GJL-200)
Suction Plate: Chromium iron casting
Motor frame: FC150 (EN-GJL-150)
Shaft: SUS420J2 (EN-X30Cr13)
Discharge Connection: 100mm MI BSP

Manufacturer’s warranty:  12 months  Made in Japan

Additional information

Weight200 kg
Dimensions50 × 50 × 100 cm
Brand

Tsurumi Pump

KRDX47.5 brochure and curve
