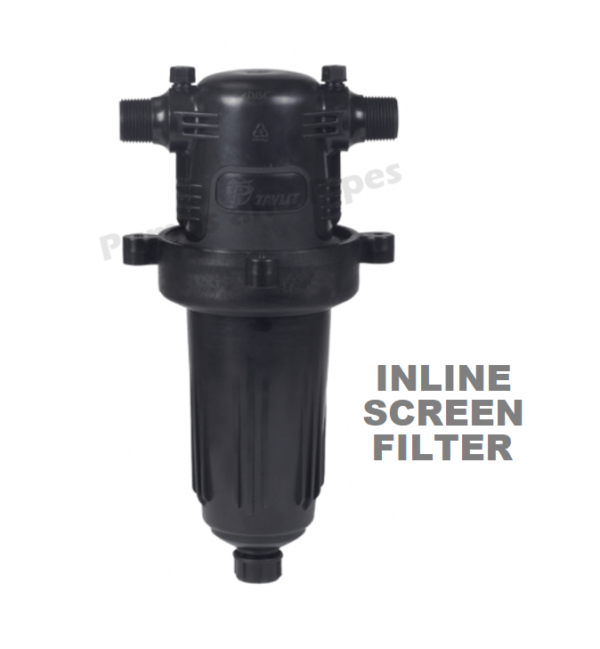

Inline Screen Filter 25mm 40mm 50mm 80mm For Irrigation And Water Transfer

Inline Screen Filter 25mm 40mm 50mm 80mm For Irrigation And Water Transfer

$135.00$390.00

In stock

$135.00$390.00

Clear
View cart

Line Filters 25mm 32mm 40mm 50mm and 80mm for Irrigation And Water Transfer

Maximum working pressure 1,000 kPa
Flow Rates  25mm -134lpm, 40mm-250lpm, 50mm-416lpm, 80mm-833lpm
Male BSP inlet & outlet
Filtration range 80 – 120 mesh
Body Material – Polypropylene & Glass Filled Nylon
Locking Ring – Polyamide & Glass Filled Nylon
O Ring – EPDM
Manufacturer’s warranty:  12 months

SKU: N/A

Description

Line Filters 25mm 32mm 40mm 50mm and 80mm for Irrigation And Water Transfer

Maximum working pressure 1,000 kPa  (134 psi)
Flow Rates
25mm MI BSP filter – 134 lpm
40mm MI BSP filter – 250 lpm
50mm MI BSP filter – 416 lpm
80mm MI BSP filter – 833 lpm
Filtration range 80 – 120 mesh
Body Material – Polypropylene & Glass Filled Nylon
Locking Ring – Polyamide & Glass Filled Nylon
O Ring – EPDM

Manufacturer’s warranty:  12 months

Additional information

WeightN/A
DimensionsN/A
Size

25mm 120 mesh screen filter, 25mm 80 mesh screen filter, 40mm 120 mesh screen filter, 40mm 80 mesh screen filter, 50mm 120 mesh screen filter, 50mm 80 mesh screen filter, 80mm 120 mesh screen filter, 80mm 80 mesh screen filter

Tavlit inline filter data
